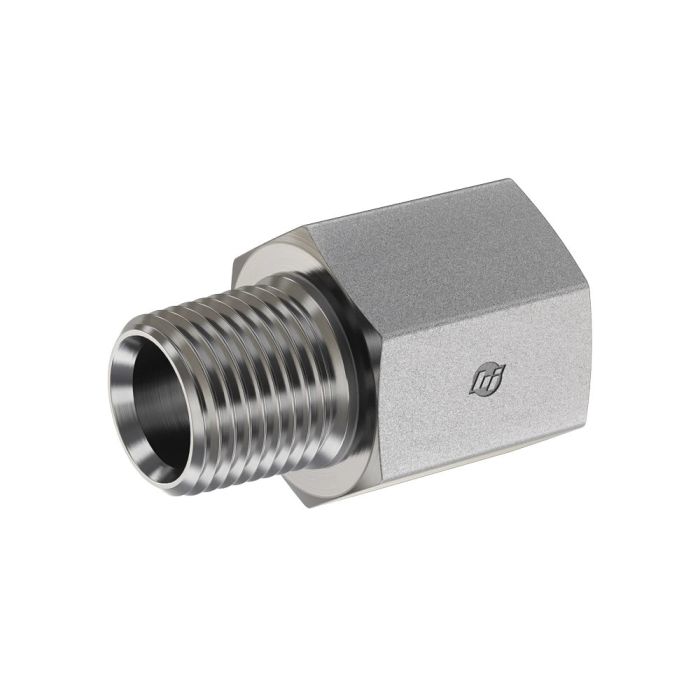

main product photo

#16 MP X #16 FP

Ask A Question

Description & Features

Constructed from straight steel, the #16 MP X #16 FP expander is designed for high-performance hydraulic systems, ensuring reliable connectivity in demanding industrial environments. Featuring Male and Female NPTF threads, both at sizes 1-11-1/2, this expander adheres to the SAE J476 specification, providing a secure fit and dependable sealing.

With a maximum dynamic pressure of 3,000 PSI, this expander is suitable for heavy-duty applications, demanding durability and strength. The expander measures an overall length of 2.370 mm, allowing for easy integration into various system configurations. Its construction from robust materials ensures longevity and performance under challenging conditions.

SKU: 5405-16-16

Supplier Part Number (MPN): 5405-16-16

Alternate Part Numbers: A2040-16-16S

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
6.258 cu-in
Dimension Standards
SAE J476
Dimensions
2.37 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Expander
Hex Size
1-5/8
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
3000 psi
Series
5405 Series
Thread 2 Drill Dimensions
0.938 in
Thread B1 Drill Dimensions
0.938 in
Thread Size
1-11-1/2

Product Questions & Answers (1)

Question by: Jerry M on Nov 20, 2025, 7:40 PM
pressure rating on this expander, is 3,000 PSI enough for most heavy equipment hydraulic lines?
Answer by: Customer Support on Nov 22, 2025, 6:53 AM
For the majority of standard industrial and heavy equipment hydraulic circuits, 3,000 PSI covers you just fine. That's the maximum dynamic pressure rated on this fitting, and most common working pressures in mobile and industrial hydraulic systems fall well within that range. Just make sure your system's peak dynamic pressure doesn't exceed that figure and you're in good shape.
