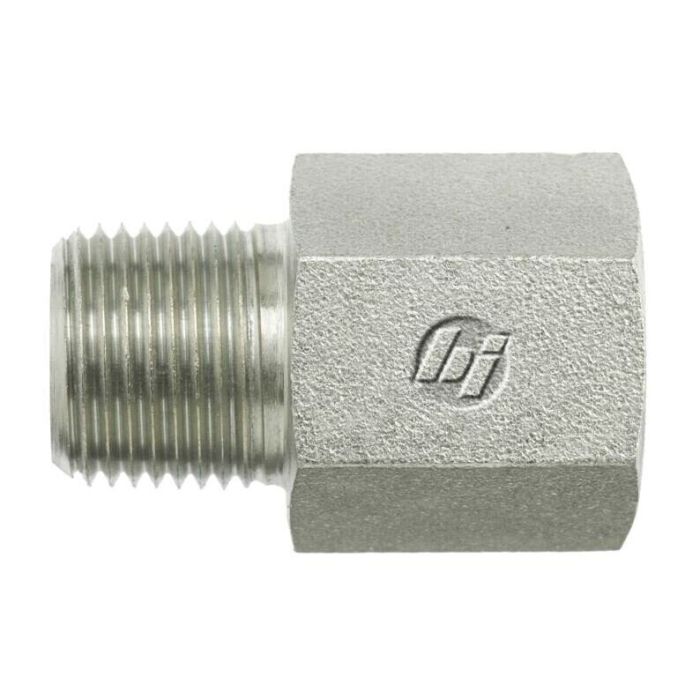

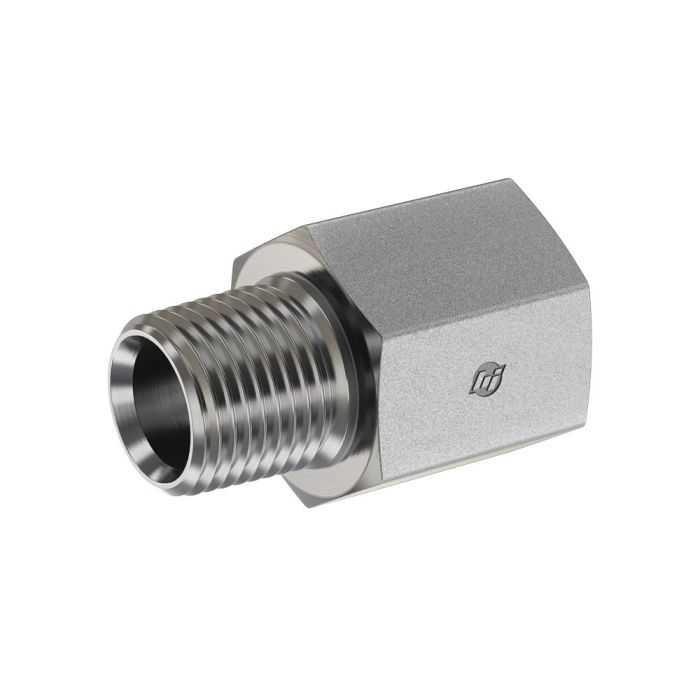

main product photo

#24 MP X #20 FP

Ask A Question

Description & Features

Enhance your hydraulic system's connectivity with the versatile #24 MP X #20 FP straight expander from Brennan Industries. Crafted from durable straight steel, this expander is designed to handle a maximum dynamic pressure of 2,500 PSI, making it suitable for demanding industrial applications. Featuring a male NPTF thread size of 1-1/2-11-1/2 and a female NPTF thread size of 1-1/4-11-1/2, it ensures a secure and reliable connection. Both threads meet the SAE J476 standard, ensuring compatibility and reliability in various hydraulic systems.

This expander has a compact design with an overall length of 2.540 mm, allowing for seamless integration into limited space environments. Its robust construction and adherence to industry standards make it an ideal choice for professionals seeking dependable performance in hydraulic applications.

SKU: 5405-24-20

Supplier Part Number (MPN): 5405-24-20

Alternate Part Numbers: 2040-24-20S, C1DX73

Specifications

Brand
BRENNAN
Connection Size 1
1-1/2 in
Connection Size 2
1-1/4 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
10.16 cu-in
Dimension Standards
SAE J476
Dimensions
2.54 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Expander
Hex Size
2 in
Material
Steel
Material Construction
12L14/C1045 Steel
Series
5405 Series
Thread 2 Drill Dimensions
1.25 in
Thread B1 Drill Dimensions
1.5 in
Thread Size
1-1/4-11-1/2, 1-1/2-11-1/2

Product Questions & Answers (1)

Question by: Melvin E on Oct 29, 2025, 6:56 AM
What size threads are on each end of this fitting, and does it matter which end goes where when you're hooking it up?
Answer by: Customer Support on Oct 31, 2025, 6:30 AM
One end carries a 1-1/2-11-1/2 male NPTF thread and the other end has a 1-1/4-11-1/2 female NPTF thread. Because those two sizes are different, orientation does matter. The male end connects into a female port on your system, and the female end receives a male fitting from the smaller line. Both threads meet SAE J476, so as long as your ports and fittings are NPTF and sized to match, the connection should seat properly.
