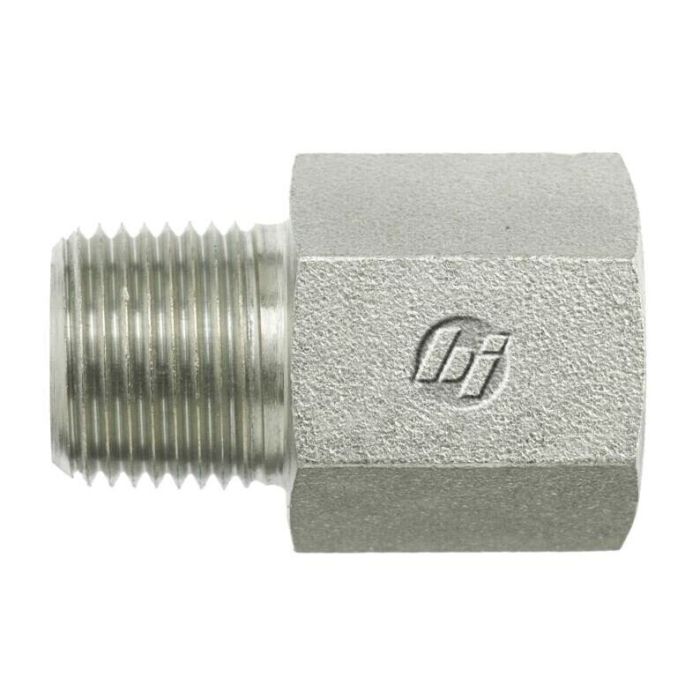

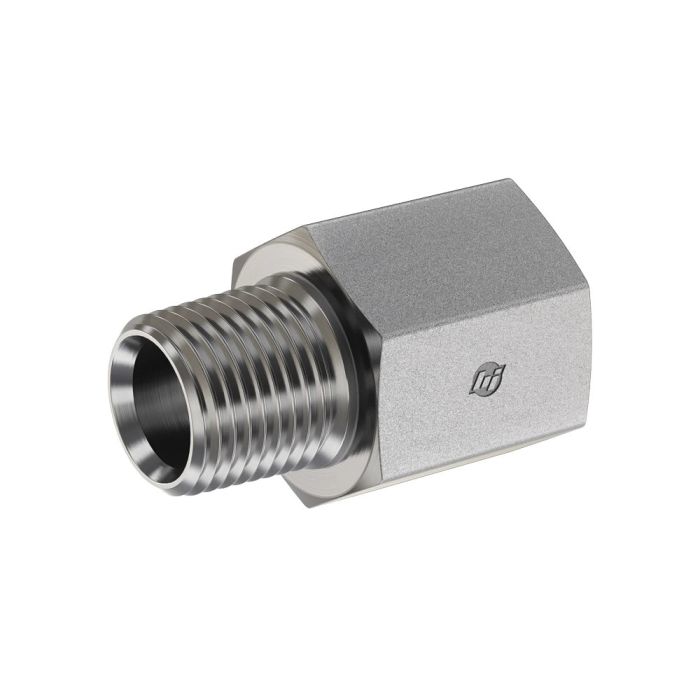

24MP-32FP STRAIGHT EXPANDER

Description & Features

Designed to step up from a 1-1/2-inch male connection to a 2-inch female port, the 24MP-32FP Straight Expander is a straight steel fitting built for hydraulic systems requiring an inline thread size increase without a change in flow direction. The male end conforms to 1-1/2-11-1/2 NPTF threading, while the female end accepts 2-11-1/2 NPTF, both meeting SAE J476 specifications.

Rated to 2,000 PSI maximum dynamic pressure, this fitting is suited for moderate-pressure hydraulic circuits. The straight configuration keeps the assembly compact, with an overall length of 2.630 inches. Steel construction provides reliable durability in industrial service environments.

SKU: 5405-24-32

Supplier Part Number (MPN): 5405-24-32

Alternate Part Numbers: A2040-24-32S, BR-5405-24-32

Specifications

Brand
BRENNAN
Connection Size 1
1-1/2 in
Connection Size 2
2 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
21.739 cu-in
Dimension Standards
SAE J476
Dimensions
2.63 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Expander
Hex Size
2-7/8 in
Material
Steel
Material Construction
12L14/C1045 Steel
Series
5405 Series
Thread 2 Drill Dimensions
1.938 in
Thread B1 Drill Dimensions
1.5 in
Thread Size
2-11-1/2, 1-1/2-11-1/2

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
#1 MP X #2 FP

5405-01-02

1/8 in

1/8-27, 1/16-27

5/8 in

02MP-02FP STRAIGHT EXPANDER

5405-02-02

1/8 in

1/8 in

1/8-27

5/8 in

#2 MP X #4 FP

5405-02-04

1/8 in

1/4 in

1/4-18 x 1/8-27

3/4 in

#2 MP X #6 FP

5405-02-06

1/8 in

3/8 in

3/8-18, 1/8-27

7/8 in

#2 MP X #8 FP (RIGID) ST.

5405-02-08

1/8 in

1/2 in

1/2-14 x 1/8-27

1-1/8 in

#4 MP X #2 FP

5405-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

5/8 in

04MP-04FP STRAIGHT EXPANDER

5405-04-04

1/4 in

1/4 in

1/4-18

3/4 in

04MP-06FP STRAIGHT EXPANDER

5405-04-06

1/4 in

3/8 in

3/8-18 x 1/4-18

7/8 in

#4 MP X #8 FP

5405-04-08

1/4 in

1/2 in

1/2-14 x 1/4-18

1-1/8 in

#4 MP X #12 FP

5405-04-12

1/4 in

3/4 in

3/4-14, 1/4-18

1-3/8 in

Steel Adapter, 3/8-18 Male NPT To 1/4-18 Female NPT, Straight

5405-06-04 Steel Male To Female NPT Adapter

3/8 in

1/4 in

3/8-18 x 1/4-18

3/4 in

#6 MP X #6 FP (RIGID) ST.

5405-06-06

3/8 in

3/8 in

3/8-18

7/8 in

06MP-08FP STRAIGHT EXPANDER

5405-06-08

3/8 in

1/2 in

1/2-14 x 3/8-18

1-1/8 in

#6 MP X #12 FP

5405-06-12

3/8 in

3/4 in

3/4-14 x 3/8-18

1-3/8 in

#8 MP X #4 FP

5405-08-04

1/2 in

1/4 in

1/2-14 x 1/4-18

7/8 in

Steel Adapter, 1/2-14 Male NPT To 3/8-18 Female NPT, Straight

5405-08-06 Steel Male To Female NPT Adapter

1/2 in

3/8 in

1/2-14 x 3/8-18

7/8 in

#8 MP X #8 FP

5405-08-08

1/2 in

1/2 in

1/2-14

1-1/8 in

#8 MP X #12 FP

5405-08-12

1/2 in

3/4 in

3/4-14 x 1/2-14

1-3/8 in

Steel Adapter, 1/2-14 Male NPT To 1-11-1/2 Female NPT, Straight

5405-08-16 Steel Male To Female NPT Adapter

1/2 in

1 in

1-11-1/2 x 1/2-14

1-5/8

Steel Adapter, 3/4-14 Male NPT To 3/8-18 Female NPT, Straight

5405-12-06 Steel Male To Female NPT Adapter

3/4 in

3/8 in

3/4-14 x 3/8-18

1-1/8 in

Steel Adapter, 3/4-14 Male NPT To 1/2-14 Female NPT, Straight

5405-12-08 Steel Male To Female NPT Adapter

3/4 in

1/2 in

3/4-14 x 1/2-14

1-1/8 in

#12 MP X #12 FP

5405-12-12

3/4 in

3/4 in

3/4-14

1-3/8 in

#12 MP X #16 FP

5405-12-16

3/4 in

1 in

1-11-1/2 x 3/4-14

1-5/8

#12 MP X #20 FP

5405-12-20

3/4 in

1-1/4 in

1-1/4-11-1/2 x 3/4-14

2 in

ADAPTER

5405-16-08

1 in

1/2 in

1-11-1/2 x 1/2-14

1-3/8 in

Steel Adapter, 1-11-1/2 Male NPT To 3/4-14 Female NPT, Straight

5405-16-12 Steel Male To Female NPT Adapter

1 in

3/4 in

1-11-1/2 x 3/4-14

1-3/8 in

#16 MP X #16 FP

5405-16-16

1 in

1 in

1-11-1/2

1-5/8

16MP-20FP STRAIGHT EXPANDER

5405-16-20

1 in

1-1/4 in

1-1/4-11-1/2 x 1-11-1/2

2 in

#16 MP X #24 FP

5405-16-24

1 in

1-1/2 in

1-1/2-11-1/2 x 1-11-1/2

2.38 in

ADAPTER

5405-20-16

1-1/4 in

1 in

1-1/4-11-1/2 x 1-11-1/2

1-3/4 in

#20 MP X #20 FP

5405-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

2 in

#20 MP X #24 FP

5405-20-24

1-1/4 in

1-1/2 in

1-1/4-11-1/2, 1-1/2-11-1/2

2.38 in

#24 MP X #20 FP

5405-24-20

1-1/2 in

1-1/4 in

1-1/4-11-1/2, 1-1/2-11-1/2

2 in

#24 MP X #24 FP

5405-24-24

1-1/2 in

1-1/2 in

1-1/2-11-1/2

2.38 in

Product Questions & Answers (1)

Question by: Hubert C on Sep 9, 2025, 8:47 AM
So this fitting goes from a smaller male to a bigger female thread, right? Just want to make sure I'm understanding it correctly before I order.
Answer by: Customer Support on Sep 11, 2025, 6:17 AM
Correct. This straight expander adapts from a 1-1/2 inch male NPTF connection to a 2 inch female NPTF connection.
