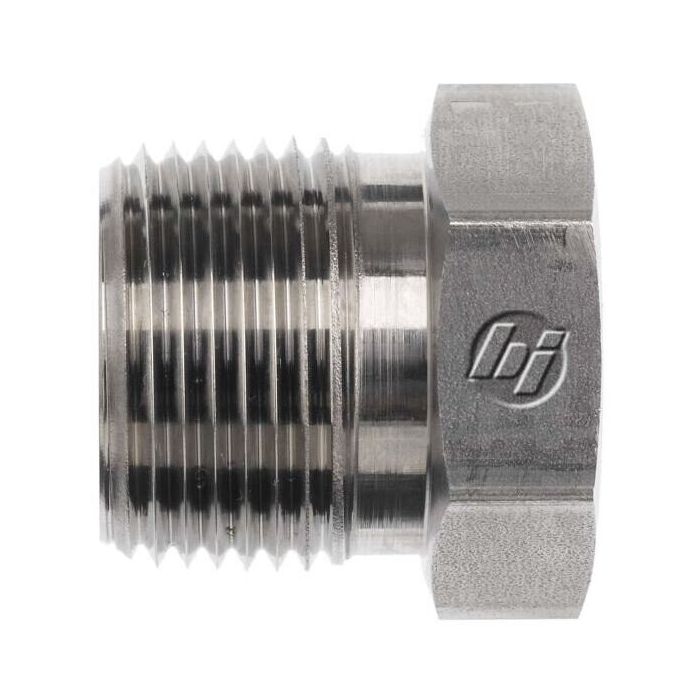

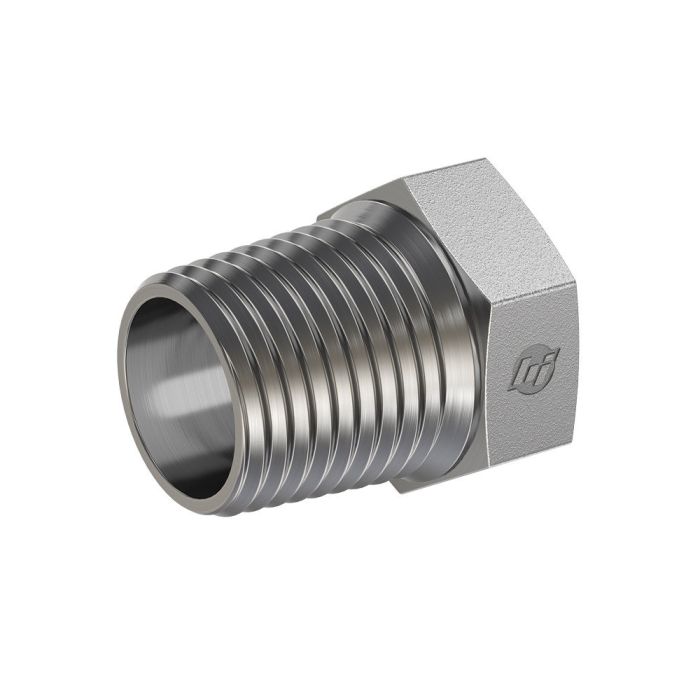

main product photo

20MP-16FP REDUCER BUSHING

Ask A Question

Description & Features

Expertly crafted by Brennan Industries Inc this reducer bushing is designed for high performance with a maximum dynamic pressure of 3 000 Psi. Ensuring durability and reliability it is constructed from straight steel.

Fitted with threads conforming to SAE J476 specifications it features a Male NPTF thread size of 1-1/4-11-1/2 and a Female NPTF thread size of 1-11-1/2. The overall length measures 1.470 mm providing a compact and efficient solution for various industrial applications.

With cubic inch space dimensions of 4.502 the 20MP-16FP REDUCER BUSHING offers precision and consistency. The reducer bushing meets high standards required in demanding environments.

MPN: 5406-20-16

Supplier Part Number: 5406-20-16

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
4.502 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.47 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Bushing
Hex Size
1-3/4 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
3000 psi
Series
5406 Series
Thread 2 Drill Dimensions
0.907 in
Thread B1 Drill Dimensions
1.142 in
Thread Size
1-1/4-11-1/2 x 1-11-1/2

Product Questions & Answers (3)

Question by: Shane G on Nov 11, 2025, 9:20 AM
got a 1-1/4 male nptf port but i need to step it down to 1 female nptf, is that what this bushing does
Answer by: Customer Support on Nov 12, 2025, 8:40 PM
Function-wise, it is a reducer bushing with a 1-1/4-11-1/2 Male NPTF on one side (B1) and a 1-11-1/2 Female NPTF on the other side (B2). Both threads are to SAE J476.
Question by: Vince G on Oct 21, 2025, 9:39 PM
So this is a reducer, right? What exactly does it reduce *from* and *to*?
Answer by: Customer Support on Oct 23, 2025, 6:15 AM
This reducer bushing goes from a Male NPTF thread size of 1-1/4-11-1/2 down to a Female NPTF thread size of 1-11/12.
Question by: Diane P on Oct 16, 2025, 4:48 PM
what's the pressure rating on this bushing, and is 3,000 psi enough for most hydraulic lines running off a mid-size industrial pump?
Answer by: Customer Support on Oct 18, 2025, 9:55 AM
For most mid-size industrial hydraulic systems, 3,000 psi is right in the wheelhouse of standard operating pressure. This bushing is rated to handle up to 3,000 psi dynamic pressure, so as long as your system stays at or below that threshold, you're in good shape. Systems pushing beyond that range would need a fitting rated higher.
