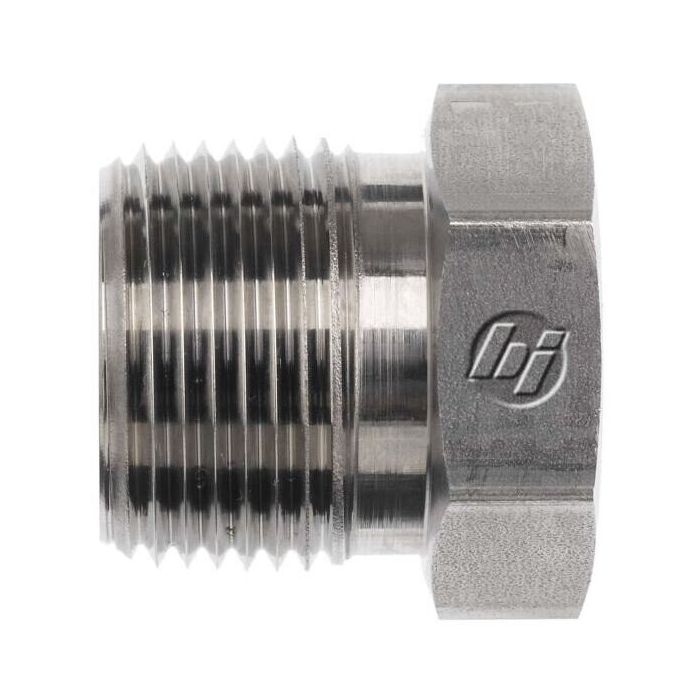

24MP-04FP REDUCER BUSHING

Description & Features

Built from straight steel construction, the 24MP-04FP Reducer Bushing steps down a 1-1/2-11-1/2 Male Nptf thread to a 1/4-18 Female Nptf connection, both conforming to SAE J476. This significant size reduction makes it well-suited for hydraulic lines requiring a transition between mismatched thread sizes without additional fittings.

Rated to 3,000 PSI maximum dynamic pressure, this fitting is appropriate for moderate- to high-pressure hydraulic circuits. Part of Brennan Industries' 5406 Series, it measures 1.570 mm in overall length and is manufactured to consistent dimensional standards across the series.

SKU: 5406-24-04

Supplier Part Number (MPN): 5406-24-04

Alternate Part Numbers: A2081-24-4S, C1DX75

Specifications

Brand BRENNAN	Connection Size 1 1-1/2 in	Connection Size 2 1/4 in	Connection Type FNPT, MNPT	Connection Type 1 Male SAE NPTF	Connection Type 2 Female SAE NPTF	Cubic Inch Space L x W x H Dimensions 6.28 cu-in	Dimension Standards SAE J476, SAE J514	Dimensions 1.57 in L	Finish Trivalent Zinc-Plated	Fitting Type Bushing	Hex Size 2 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 3000 psi	Series 5406 Series	Thread 2 Drill Dimensions 0.281 in	Thread B1 Drill Dimensions 1.486 in	Thread Size 1-1/2-11-1/2 x 1/4-18

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
5406-04-02	1/4 in	1/8 in	1/4-18 x 1/8-27	5/8 in
5406-06-02	3/8 in	1/8 in	3/8-18, 1/8-27	3/4 in
5406-06-04	3/8 in	1/4 in	3/8-18 x 1/4-18	3/4 in
5406-08-02	1/2 in	1/8 in	1/2-14 x 1/8-27	7/8 in
5406-08-04	1/2 in	1/4 in	1/2-14 x 1/4-18	7/8 in
5406-08-06	1/2 in	3/8 in	1/2-14 x 3/8-18	7/8 in
5406-12-02	3/4 in	1/8 in	3/4-14 x 1/8-27	1-1/8 in
5406-12-04	3/4 in	1/4 in	3/4-14, 1/4-18	1-1/8 in
5406-12-06	3/4 in	3/8 in	3/4-14 x 3/8-18	1-1/8 in
5406-12-08	3/4 in	1/2 in	3/4-14 x 1/2-14	1-1/8 in
5406-16-02	1 in	1/8 in	1-11-1/2 x 1/8-27	1-3/8 in
5406-16-04	1 in	1/4 in	1-11-1/2 x 1/4-18	1-3/8 in
5406-16-06	1 in	3/8 in	1-11-1/2 x 3/8-18	1-3/8 in
5406-16-08	1 in	1/2 in	1-11-1/2 x 1/2-14	1-3/8 in
5406-16-12	1 in	3/4 in	1-11-1/2 x 3/4-14	1-3/8 in
5406-20-04	1-1/4 in	1/4 in	1-1/4-11-1/2 x 1/4-18	1-3/4 in
5406-20-06	1-1/4 in	3/8 in	1-1/4-11-1/2 x 3/8-18	1-3/4 in
5406-20-08 Steel NPT Bushing Adapter	1-1/4 in	1/2 in	1-1/4-11-1/2 x 1/2-14	1-3/4 in
5406-20-12	1-1/4 in	3/4 in	1-1/4-11-1/2 x 3/4-14	1-3/4 in
5406-20-16	1-1/4 in	1 in	1-1/4-11-1/2 x 1-11-1/2	1-3/4 in
5406-24-06 Steel NPT Bushing Adapter	1-1/2 in	3/8 in	1-1/2-11-1/2 x 3/8-18	2 in
5406-24-08	1-1/2 in	1/2 in	1-1/2-11-1/2 x 1/2-14	2 in
5406-24-12	1-1/2 in	3/4 in	1-1/2-11-1/2 x 3/4-14	2 in
5406-24-16	1-1/2 in	1 in	1-1/2-11-1/2 x 1-11-1/2	2 in
5406-24-20	1-1/2 in	1-1/4 in	1-1/4-11-1/2, 1-1/2-11-1/2	2 in
5406-32-06	2 in	3/8 in	2-11-1/2 x 3/8-18	2-1/2 in
5406-32-08	2 in	1/2 in	2-11-1/2 x 1/2-14	2-1/2 in
5406-32-12	2 in	3/4 in	2-11-1/2 x 3/4-14	2-1/2 in
5406-32-16	2 in	1 in	2-11-1/2, 1-11-1/2	2-1/2 in
5406-32-20	2 in	1-1/4 in	2-11-1/2 x 1-1/4-11-1/2	2-1/2 in
5406-32-24	2 in	1-1/2 in	2-11-1/2, 1-1/2-11-1/2	2-1/2 in
5406-40-32	2-1/2 in	2 in	2-1/2-8 x 2-11-1/2	3 in
5406-48-32	3 in	2 in	3-8 x 2-11-1/2

Product Questions & Answers (1)

Question by: Joyce A on Mar 1, 2026, 6:41 AM

Hey, just want to make sure this reducer bushing will fit my setup. I got a 1-1/2 NPT fitting and need to go down to 1/4 NPT.

Answer by: Customer Support on Mar 2, 2026, 1:12 PM

For hydraulic lines needing that specific transition, this reducer bushing will work. It's designed to step down from a 1-1/2-11-1/2 Male NPTF thread to a 1/4-18 Female NPTF connection, according to SAE J476 standards.
