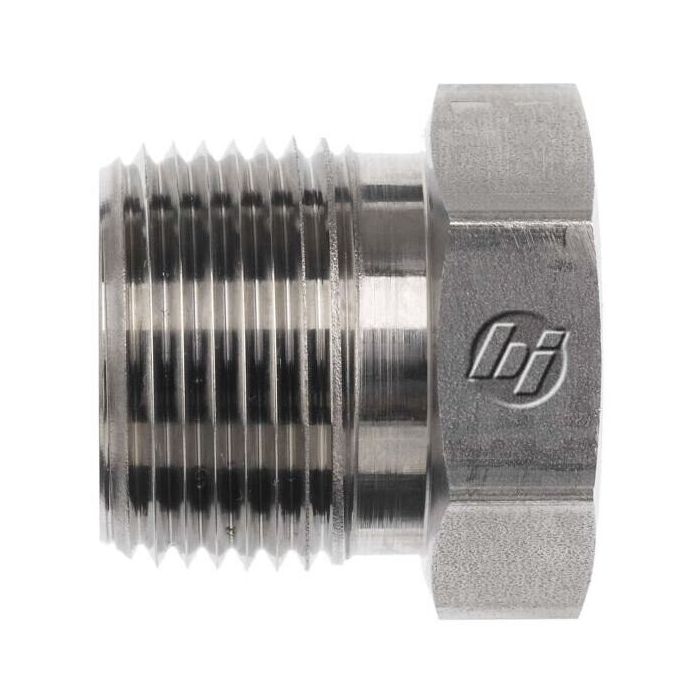

24MP-16FP REDUCER BUSHING STNLS

Manufactured from straight stainless steel, the 24MP-16FP Reducer Bushing is designed to connect a 1-1/2-11-1/2 Male NPTF thread to a 1-11-1/2 Female NPTF thread, reducing between two different line sizes within a single compact fitting. Both thread ends conform to SAE J476, making this bushing compatible with standard NPTF hydraulic and fluid system connections.

Rated to 3,000 PSI maximum dynamic pressure, this fitting is well suited for demanding hydraulic circuits where stainless steel construction offers resistance to corrosion in harsh or chemically aggressive environments. The overall length of 1.570 inches keeps the fitting compact for installations where space is a consideration. Brennan Industries' Series 5406 reducer bushings are a reliable choice when a direct inline size reduction is needed without additional adapters.

California residents: This product is subject to Prop 65 warnings per Brennan Industries.

SKU: 5406-24-16-SS

Supplier Part Number (MPN): 5406-24-16-SS

Alternate Part Numbers: APTR-1-1/2X1
