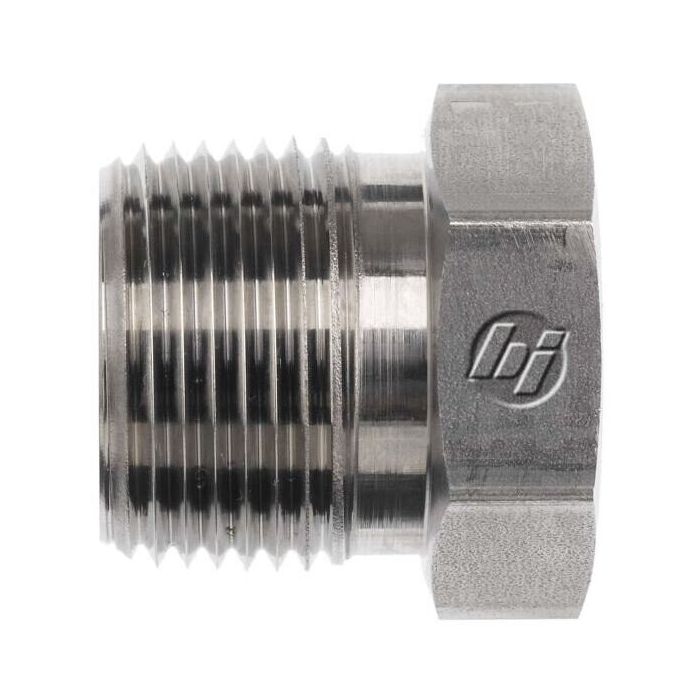

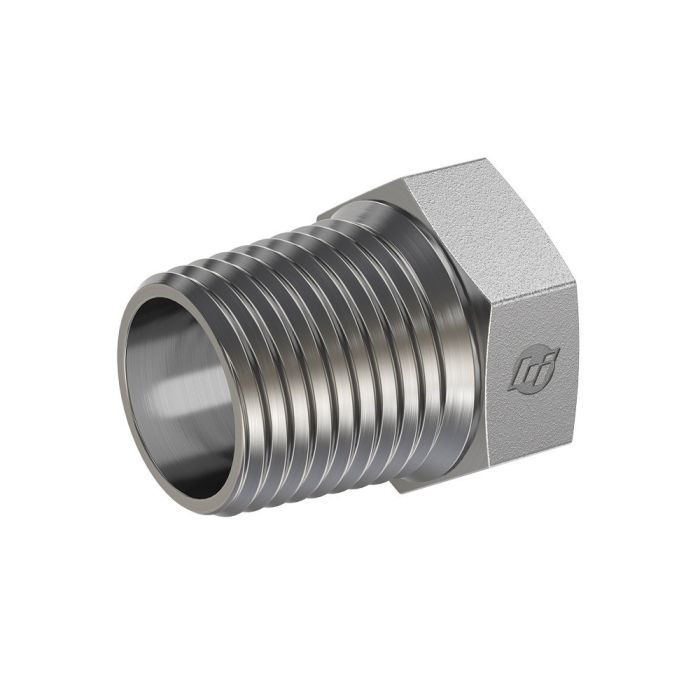

main product photo

24MP-20FP REDUCER BUSHING

Ask A Question

Description & Features

The 24MP-20FP Reducer Bushing is engineered by Brennan Industries Inc. This high-quality component is constructed from straight steel ensuring reliability and durability in demanding industrial environments.

The product features a male NPTF thread size of 1-1/2-11-1/2 and a female NPTF thread size of 1-1/4-11-1/2 both conforming to SAE J476 standards making it suitable for various industrial applications.

With a maximum dynamic pressure rating of 2 500 psi this reducer bushing offers robust performance under high pressure conditions. The overall length of 1.570 mm allows for precise and secure fitting.

Its series 5406 design ensures compatibility with similar products aiding in versatile configurations. The component's precision engineering delivers efficiency making it a valuable asset for maintaining optimal functionality.

Supplier Part Number: 5406-24-20

MPN: 5406-24-20

Specifications

Brand
BRENNAN
Connection Size 1
1-1/2 in
Connection Size 2
1-1/4 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
6.28 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.57 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Bushing
Hex Size
2 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
2500 psi
Series
5406 Series
Thread 2 Drill Dimensions
1.142 in
Thread B1 Drill Dimensions
1.486 in
Thread Size
1-1/4-11-1/2, 1-1/2-11-1/2

Product Questions & Answers (2)

Question by: Eddie C on Nov 10, 2025, 4:37 PM
Will this fitting work with standard NPT threads, or does it need something special?
Answer by: Customer Support on Nov 12, 2025, 8:52 AM
The threads are NPTF, which stands for National Pipe Taper Fuel. The male and female threads both conform to SAE J476 standards.
Question by: Dwight E on Nov 6, 2025, 8:18 AM
trying to step a port down, is this bushing male 1-1/2 nptf to female 1-1/4 nptf?
Answer by: Customer Support on Nov 8, 2025, 6:45 AM
For reducing a threaded port, it goes from a 1-1/2-11-1/2 male NPTF on one side to a 1-1/4-11-1/2 female NPTF on the other, and both thread forms are called out to SAE J476.
