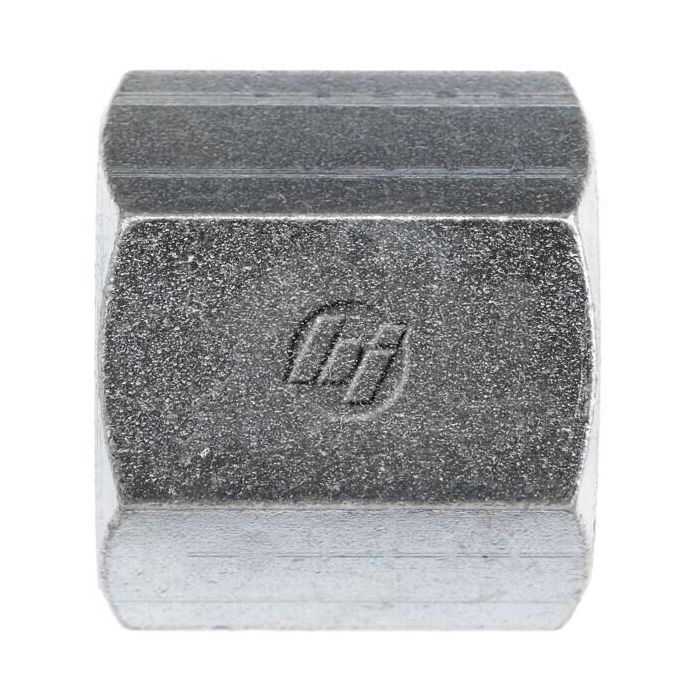

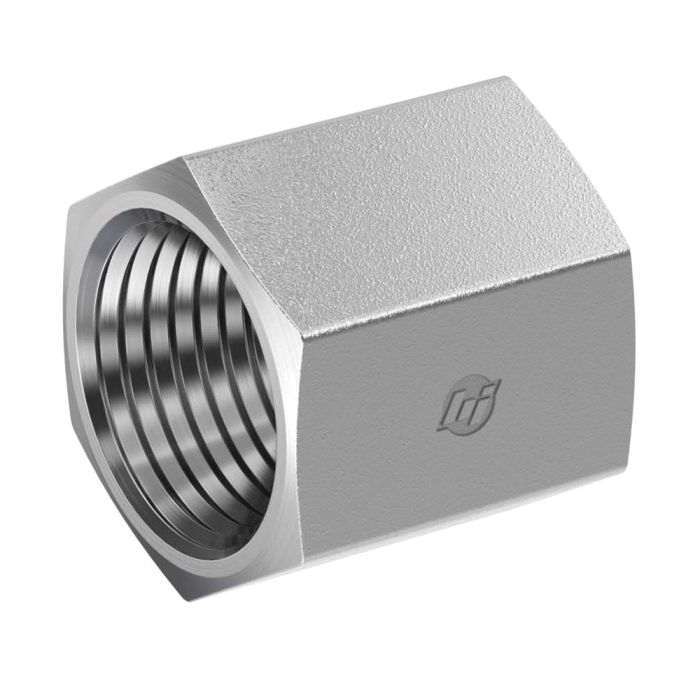

ADAPTER 1/8 PIPE CAP

Description & Features

This straight steel adapter features a 1/8-27 SAE J476 female NPTF thread.

The adapter 1/8 pipe cap is part of the 5406-C series from Brennan Industries.

SKU: 5406-C-02

Supplier Part Number (MPN): 5406-C-02

Alternate Part Numbers: 5406-CAP-02

Specifications

Brand
BRENNAN
Connection Size 1
1/8 in
Connection Type
FNPT
Connection Type 1
Female NPTF
Dimension Standards
SAE J476
Dimensions
0.563 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Cap
Hex Size
0.563 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Series
5406-C Series
Thread B1 Drill Dimensions
0.22 in
Thread Size
1/8-27

Product Questions & Answers (1)

Question by: Bonnie W on Feb 6, 2026, 8:09 AM
what thread size does this cap use, and is it the NPTF style or just regular NPT?
Answer by: Customer Support on Feb 7, 2026, 12:23 PM
NPTF, specifically 1/8-27 per SAE J476. That's a dry-seal thread, so it's built to hold pressure without relying solely on sealant the way standard NPT does. The female thread on this cap engages the male end of a 1/8 pipe fitting to close it off.
