06 PIPE CAP

Description & Features

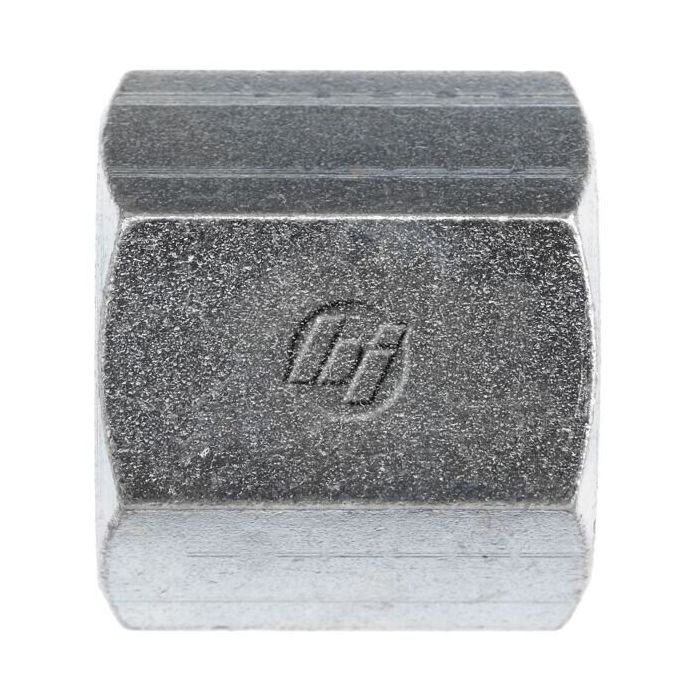

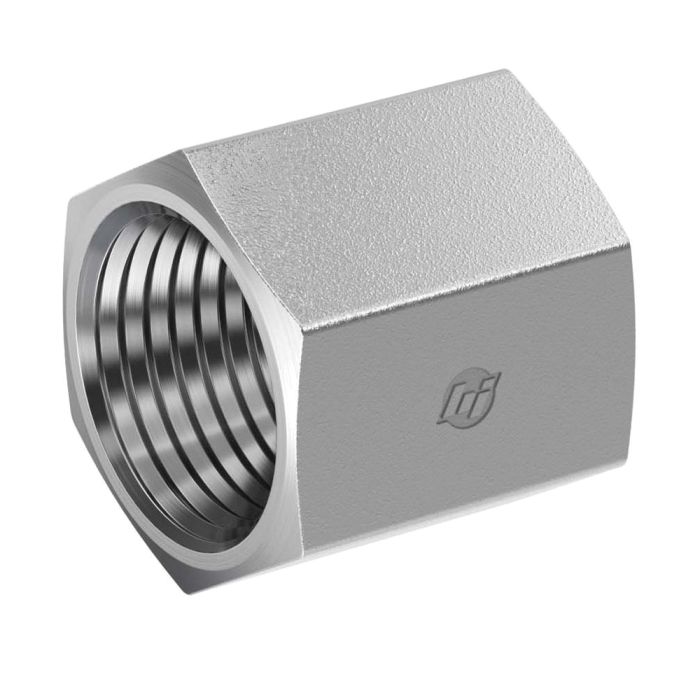

This hex pipe cap from Brennan Industries Inc is engineered to deliver reliable performance in a variety of industrial applications. Constructed from durable straight steel it meets the specifications of SAE J476.

With an overall length of 0.810 mm and a female NPTF thread type this cap is designed for 3/8-18 thread sizes making it suitable for sealing and protecting threaded connections efficiently. This product is part of the 5406-C series ensuring consistency and compatibility across similar fittings.

Prop 65 Warning: California residents should be aware of potential exposure to chemicals known to cause cancer birth defects or other reproductive harm.

Supplier Part Number: 5406-C-06

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Type
FNPT
Connection Type 1
Female NPTF
Dimension Standards
SAE J476
Dimensions
0.81 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Cap
Hex Size
0.81 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Series
5406-C Series
Thread B1 Drill Dimensions
0.406 in
Thread Size
3/8-18

Similar Products

Model Number Connection Size 1 Thread Size Hex Size Price Action
ADAPTER 1/8 PIPE CAP

5406-C-02

1/8 in

1/8-27

0.563 in

04 PIPE CAP

5406-C-04

1/4 in

1/4-18

3/4 in

08 PIPE CAP

5406-C-08

1/2 in

1/2-14

1 x 1 in

Steel Adapter, 3/4-14 Female NPT Cap

5406-C-12 Steel Female NPT Cap

3/4 in

3/4-14

1.188 in

-16 FP PIPE CAP

5406-C-16

1 in

1-11-1/2

1-5/8

ADAPTER 1-1/4 PIPE CAP

5406-C-20

1-1/4 in

1-1/4-11-1/2

2 in

ADAPTER 1-1/2 PIPE CAP

5406-C-24

1-1/2 in

1-1/2-11-1/2

2.38 in

#32 PIPE CAP

5406-C-32

2 in

2-11-1/2

2-7/8 in

Product Questions & Answers (1)

Question by: Rusty B on Jan 7, 2026, 1:43 PM
What size pipe does this cap fit? I wanna make sure its the right one before I order it.
Answer by: Customer Support on Jan 8, 2026, 3:25 PM
It's designed for a 3/8-18 thread size, which should match up with your pipe if it meets that specification.
