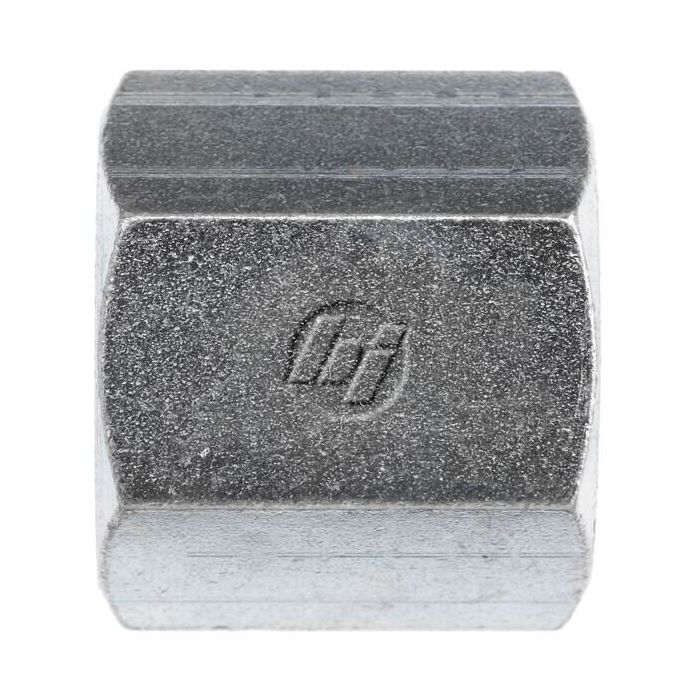

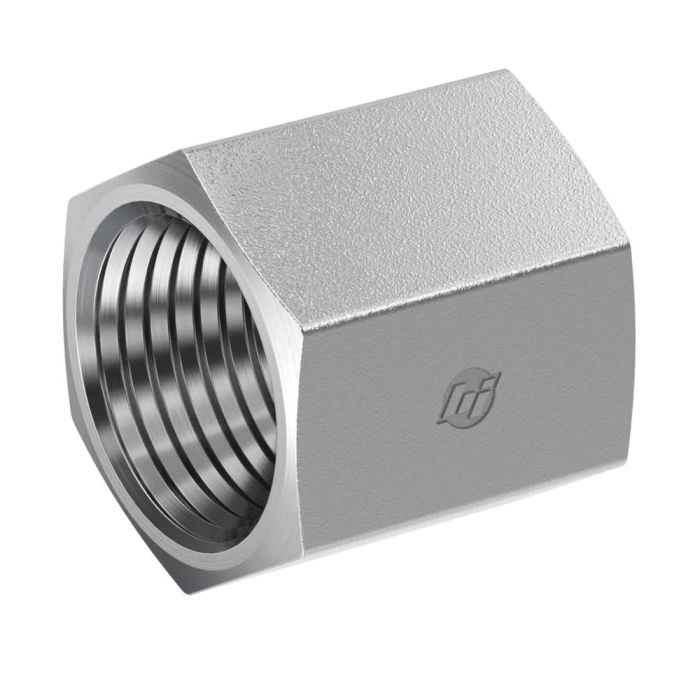

08 PIPE CAP

Description & Features

The 08 PIPE CAP from Brennan Industries Inc is meticulously designed for efficient sealing in various industrial applications. This 08 NPTF hex pipe cap features a straight steel construction ensuring durability and reliability in demanding environments.

This cap has an overall length of 1.000 mm and is part of the 5406-C series. It includes a female NPTF thread B1 with a drill size of 0.531 mm compliant with SAE J476 specifications for optimal compatibility.

Prop 65 Warning: California residents should note this product includes materials known to cause health risks.

Supplier Part Number: 5406-C-08

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Type
FNPT
Connection Type 1
Female NPTF
Dimension Standards
SAE J476
Dimensions
1 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Cap
Hex Size
1 x 1 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Series
5406-C Series
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14

Similar Products

Model Number Connection Size 1 Thread Size Hex Size Price Action
ADAPTER 1/8 PIPE CAP

5406-C-02

1/8 in

1/8-27

0.563 in

04 PIPE CAP

5406-C-04

1/4 in

1/4-18

3/4 in

06 PIPE CAP

5406-C-06

3/8 in

3/8-18

0.81 in

Steel Adapter, 3/4-14 Female NPT Cap

5406-C-12 Steel Female NPT Cap

3/4 in

3/4-14

1.188 in

-16 FP PIPE CAP

5406-C-16

1 in

1-11-1/2

1-5/8

ADAPTER 1-1/4 PIPE CAP

5406-C-20

1-1/4 in

1-1/4-11-1/2

2 in

ADAPTER 1-1/2 PIPE CAP

5406-C-24

1-1/2 in

1-1/2-11-1/2

2.38 in

#32 PIPE CAP

5406-C-32

2 in

2-11-1/2

2-7/8 in

Product Questions & Answers (3)

Question by: Roy G on May 24, 2025, 11:35 AM
Will this cap keep hydraulic fluid from leaking out of a pipe fitting?
Answer by: Customer Support on May 25, 2025, 1:50 PM
Designed for efficient sealing, this pipe cap should prevent leaks in various industrial applications when properly installed on a compatible NPTF fitting.
Question by: Roy P on Jul 22, 2025, 10:51 AM
what thread size is on this cap, and is it NPTF or just NPT?
Answer by: Customer Support on Jul 23, 2025, 1:48 PM
Female NPTF, sized at 1/2-14. That puts it in the tapered thread family built for pressure-tight sealing without needing a separate sealant on every joint. The thread spec follows SAE J476, so it'll mate correctly with standard NPTF fittings in that size range.
Question by: Howard P on Jun 13, 2025, 4:48 PM
got a 1/2-14 female nptf port i need to seal off, is this the right cap?
Answer by: Customer Support on Jun 15, 2025, 8:51 AM
For a port with female NPTF threads sized 1/2-14, this cap matches that thread type and size, so it’s intended to seal that connection.
