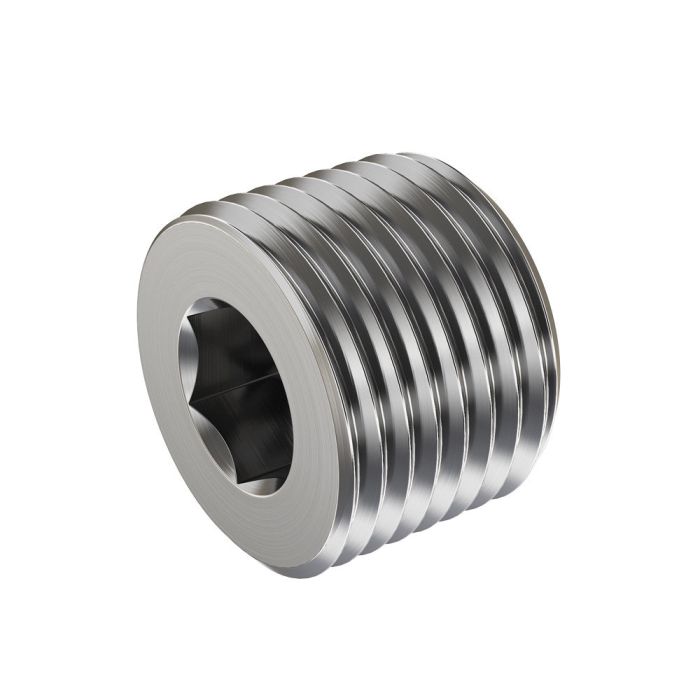

02 HOLLOW HEX PIPE PLUG

Ask A Question

Description & Features

The 02 NPTF Hollow Hex Pipe Plug offers robust performance with its straight steel construction. Featuring a 1/8-27 Male NPTF threaded type that adheres to SAE J476 standards this component ensures reliable connectivity and secure sealing in industrial applications.

Designed by Brennan Industries Inc. this plug is part of the 5406-HP series and boasts an overall length of 0.300 mm. The hollow hex configuration enhances its versatility accommodating specific engineering needs and allowing for precise installation and removal.

Made from high-quality materials the 02 Hollow Hex Pipe Plug is engineered for durability and longevity. Its 0.220 mm thread B1 drill size and male NPTF threading offer compatibility and conformity to critical industry standards.

Supplier Part Number: 5406-HP-02

California Residents: PROP-65 WARNING

Specifications

Brand
BRENNAN
Connection Size 1
1/8 in
Connection Type
MNPT
Connection Type 1
Male NPTF
Dimension Standards
SAE J476
Dimensions
0.3 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Plug
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Series
5406-HP Series
Thread B1 Drill Dimensions
0.22 in
Thread Size
1/8-27

Product Questions & Answers (3)

Question by: Glen M on May 7, 2025, 9:00 AM
What thread spec does this plug run on, and is it NPTF or just NPT?
Answer by: Customer Support on May 9, 2025, 6:54 AM
Male NPTF, 1/8-27, built to SAE J476. NPTF threads are designed to seal on the threads themselves rather than relying on a separate sealant or gasket, so you get a more reliable pressure seal than standard NPT in most hydraulic and pneumatic setups.
Question by: Denise E on Feb 17, 2026, 12:29 PM
What size drill bit do I need for the threads on this plug?
Answer by: Customer Support on Feb 19, 2026, 6:47 AM
The thread B1 drill size you'll need is 0.220 mm.
Question by: Kent L on Sep 1, 2025, 8:41 PM
got a port that’s 1/8-27 nptf male, is this the right plug for it?
Answer by: Customer Support on Sep 3, 2025, 2:24 PM
For a 1/8-27 male NPTF thread requirement, this plug matches that thread size and type, and it is built to the SAE J476 thread specification.
