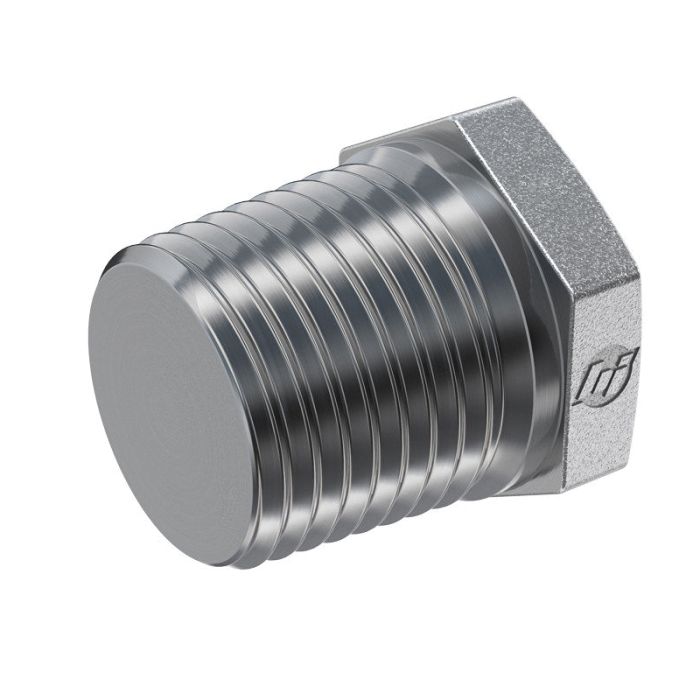

main product photo

02 EXTERNAL HEX PIPE PLUG

Ask A Question

Description & Features

The 02 External Hex Pipe Plug is designed for industry-specific applications particularly in the context of precise engineering requirements. Manufactured by Brennan Industries Inc this hex head pipe plug ensures optimal performance and longevity.

The product features a male NPTF thread type adhering to the SAE J476 specification providing reliable connectivity in various scenarios. Crafted from straight steel this plug offers robustness and durability in demanding environments.

With an overall length of 0.562 mm and a secondary length of 0.170 mm the 5406-P series plug is engineered for accurate fitting and ease of use. The hex head facilitates straightforward installation and removal making it a practical choice for technical applications.

Thread B1 measures 0.220 mm in drill size and fits 1/8-27 threading standards ensuring compatibility with a range of equipment and components.

MPN: 5406-P-02

Supplier Part Number: 5406-P-02

Specifications

Brand
BRENNAN
Connection Size 1
1/8 in
Connection Type
MNPT
Connection Type 1
Male NPTF
Dimension Standards
SAE J476
Dimensions
0.56 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Plug
Hex Size
7/16 in
l2 Dimensions
0.17 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Series
5406-P Series
Thread B1 Drill Dimensions
0.22 in
Thread Size
1/8-27

Product Questions & Answers (2)

Question by: Jimmy S on Apr 5, 2026, 8:25 AM
What thread type and spec does this plug run? Trying to make sure it'll mate up right with a 1/8-27 port before I go ordering a handful of em.
Answer by: Customer Support on Apr 6, 2026, 1:58 PM
Male NPTF threads sized at 1/8-27, built to SAE J476 spec. That's a dry-seal thread standard, so it's engineered to seal on the threads themselves without relying on a separate sealant or tape in most installations. If your port is cut to 1/8-27 NPTF, this plug is a direct fit.
Question by: Peggy R on Aug 19, 2025, 12:13 PM
got a port that’s 1/8-27. is this the right plug for it?
Answer by: Customer Support on Aug 21, 2025, 6:58 AM
For a 1/8-27 port, this matches that thread size and it uses a male NPTF thread (SAE J476), so it’s intended to screw into a 1/8-27 NPTF female port.
