08 EXTERNAL HEX PIPE PLUG STNLS

Ask A Question

Description & Features

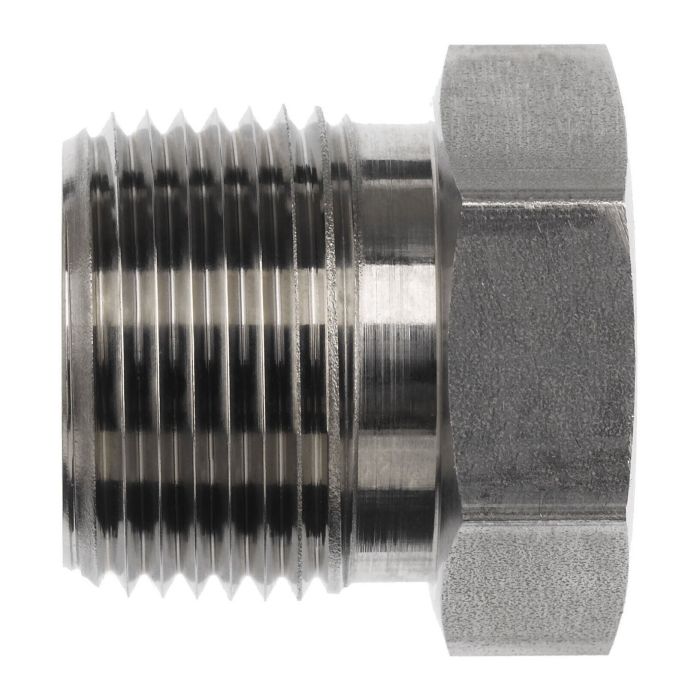

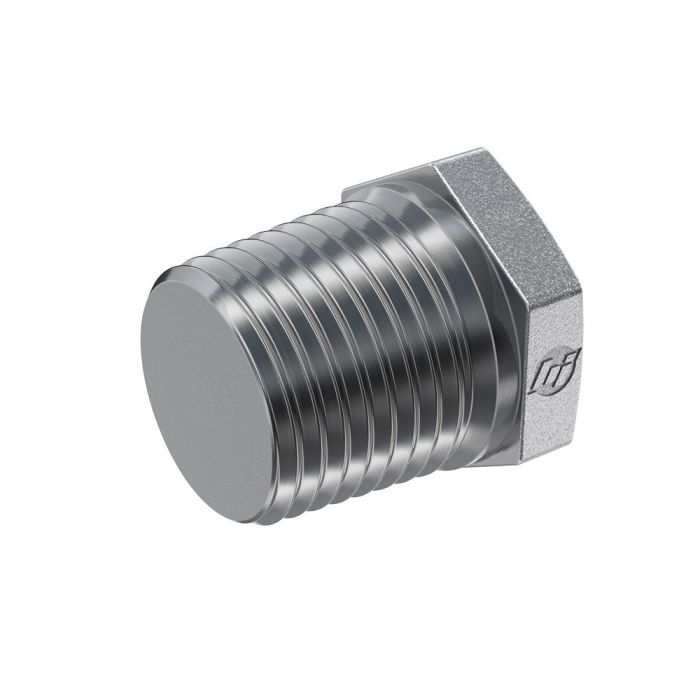

This straight stainless steel external hex pipe plug features a 1/2-14 thread size with Male NPTF threads conforming to SAE J476 specifications. The 08 EXTERNAL HEX PIPE PLUG STNLS is part of the Brennan 5406-P series.

It has an overall length of 1.120 inches (28.4 mm) and a thread drill size of 0.531 inches (13.5 mm).

SKU: 5406-P-08-SS

Supplier Part Number (MPN): 5406-P-08-SS

Alternate Part Numbers: A1/2HP

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Type
MNPT
Connection Type 1
Male NPTF
Dimension Standards
SAE J476
Dimensions
0.96 in L
Fitting Type
Plug
Hex Size
7/8 in
l2 Dimensions
0.37 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Series
5406-P Series
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14

Product Questions & Answers (1)

Question by: Jimmy A on Oct 16, 2025, 2:53 PM
Is this plug stainless all the way through, or just coated?
Answer by: Customer Support on Oct 17, 2025, 7:23 PM
This straight pipe plug is made from stainless steel.
