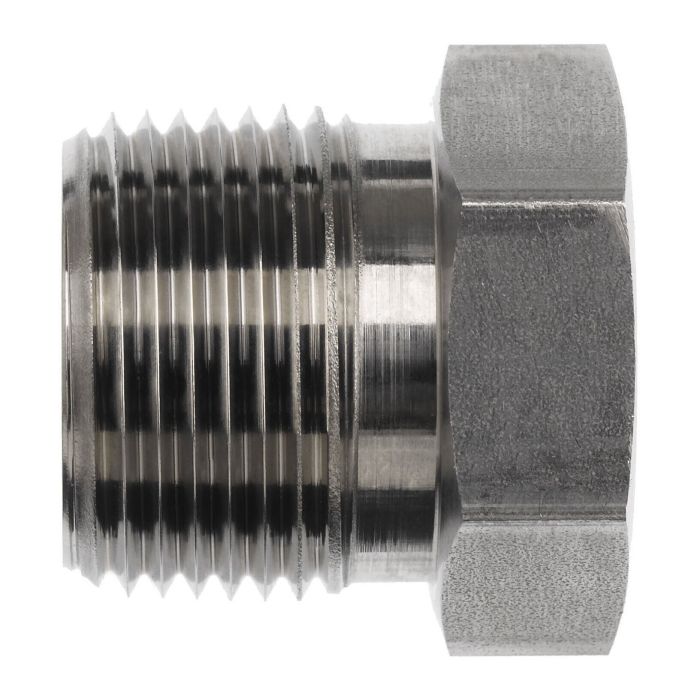

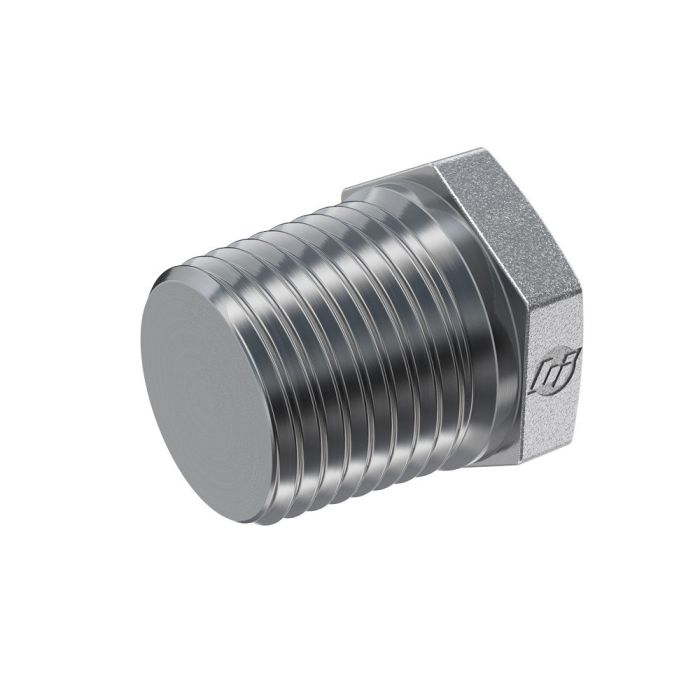

12 EXTERNAL HEX PIPE PLUG

Description & Features

The 12 External Hex Pipe Plug part of the 5406-P series from Brennan Industries Inc is crafted from high-quality straight steel. Designed with a male NPTF thread type and a hex head this plug ensures a secure fit in appropriate applications.

Meeting the SAE J476 specification it features a thread B1 size of 3/4-14 and a thread B1 drill diameter of 0.719 mm. The overall length measures 1.170 mm with an additional length of 0.420 mm attributed to the head.

Ideal for industrial use this product guarantees durability and precision. The robust construction and compliance with industry standards make it a reliable choice for various technical needs.

Supplier Part Number: 5406-P-12

California Residents: PROP-65 WARNING

Specifications

Brand BRENNAN	Connection Size 1 3/4 in	Connection Type MNPT	Connection Type 1 Male NPTF	Dimension Standards SAE J476	Dimensions 1.17 in L	Finish Trivalent Zinc-Plated	Fitting Type Plug	Hex Size 1-1/8 in	l2 Dimensions 0.42 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 5500 psi	Series 5406-P Series	Thread B1 Drill Dimensions 0.719 in	Thread Size 3/4-14

Product Questions & Answers (1)

Question by: Brenda M on Jul 7, 2025, 9:50 AM

Is this plug made of regular steel or something special?

Answer by: Customer Support on Jul 9, 2025, 6:34 AM

This plug is crafted from straight steel, ensuring durability for industrial use.
