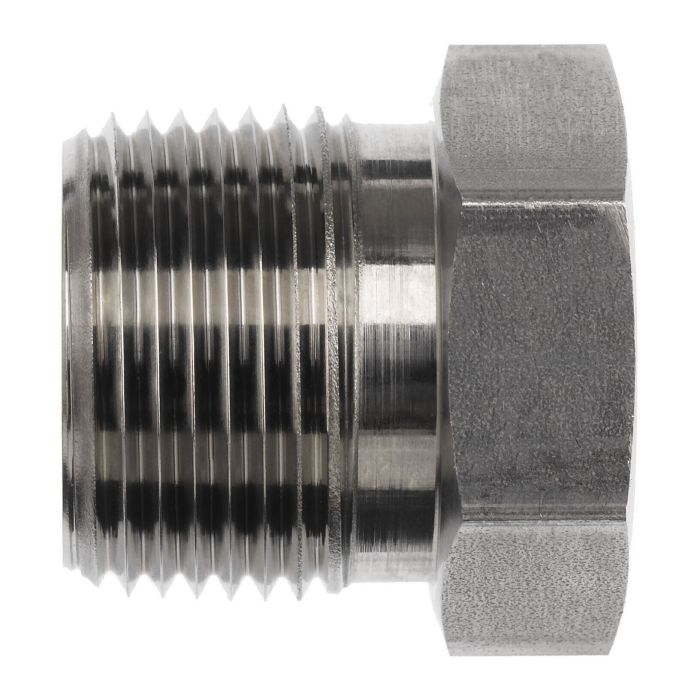

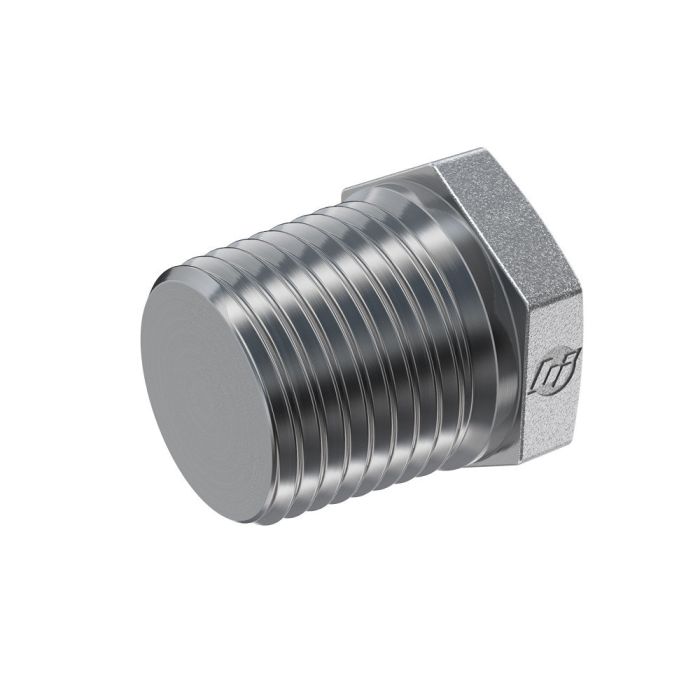

main product photo

16 EXTERNAL HEX PIPE PLUG

Ask A Question

Description & Features

The 16 External Hex Pipe Plug by Brennan Industries Inc offers superior performance in industrial settings. This robust straight steel plug ensures secure and precise fitting with its Male NPTF threading adhering to SAE J476 specifications. Designed for optimal durability and reliability it features a 1-11-1/2 thread size and a hex head for easy installation and removal.

With an overall length of 1.360 mm and a secondary length of 0.420 mm this plug is meticulously engineered to meet stringent quality standards. Perfect for various industrial applications it provides a dependable solution for your connection needs. Note: California residents should be aware of the PROP-65 warning associated with this product.

Supplier Part Number: 5406-P-16

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Type
MNPT
Connection Type 1
Male NPTF
Dimension Standards
SAE J476
Dimensions
1.36 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Plug
Hex Size
1-3/8 in
l2 Dimensions
0.42 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
4500 psi
Series
5406-P Series
Thread B1 Drill Dimensions
0.907 in
Thread Size
1-11-1/2

Product Questions & Answers (1)

Question by: Earl H on May 2, 2025, 6:27 PM
trying to plug a port, is this one a male nptf plug with a hex head?
Answer by: Customer Support on May 4, 2025, 5:21 PM
For sealing off a threaded port, this is a straight steel pipe plug with Male NPTF threads and a hex head so you can install or remove it with a wrench.
