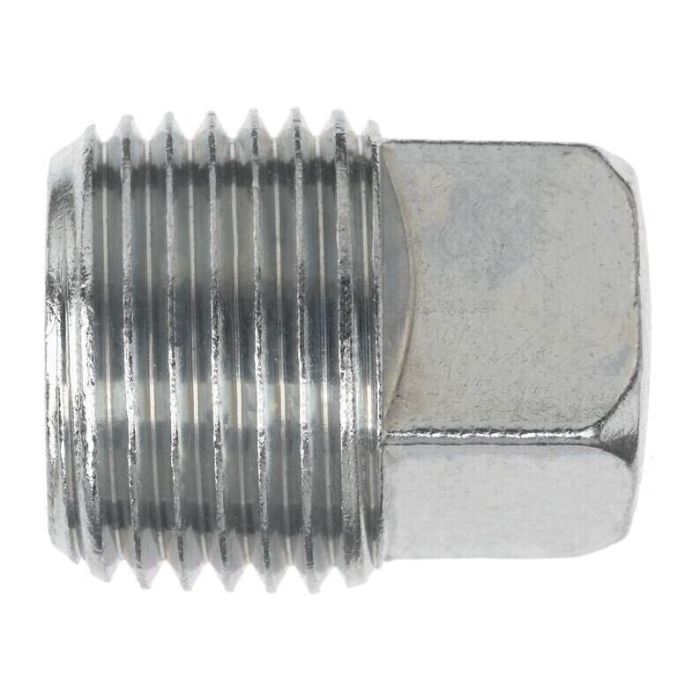

04 SQUARE HEAD PIPE PLUG

Description & Features

Manufactured from straight steel, this 1/4-18 Male NPTF square head pipe plug is designed to seal unused ports and threaded openings in hydraulic systems and industrial fluid circuits. The square head drive style provides reliable torque engagement during installation and removal using standard wrenches, making it a practical choice for maintenance-intensive environments.

Conforming to SAE J476, the 04 Square Head Pipe Plug carries a 1/4-18 NPTF thread specification, with an overall length of 0.750 inches and a drill size of 0.281 inches. The NPTF thread form creates a pressure-tight mechanical seal without the need for additional sealant, suited for use in hydraulic and pneumatic port applications. Manufactured by Brennan Industries, this plug is subject to California Proposition 65 requirements.

SKU: 5406-SHP-04

Supplier Part Number (MPN): 5406-SHP-04

Specifications

Brand BRENNAN	Connection Size 1 1/4 in	Connection Type MNPT	Connection Type 1 Male NPTF	Dimension Standards SAE J476	Dimensions 0.76 in L	Finish Trivalent Zinc-Plated	Fitting Type Plug	Hex Size 3/8 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 6000 psi	Series 5406-SHP Series	Thread B1 Drill Dimensions 0.281 in	Thread Size 1/4-18

Similar Products

Model Number	Connection Size 1	Thread Size	Hex Size
5406-SHP-02	1/8 in	1/8-27
5406-SHP-06	3/8 in	3/8-18	7/16 in
5406-SHP-08	1/2 in	1/2-14	0.563 in
5406-SHP-12	3/4 in	3/4-14	5/8 in
5406-SHP-16	1 in	1-11-1/2	0.81 in
5406-SHP-20	1-1/4 in	1-1/4-11-1/2	0.94 in
5406-SHP-24	1-1/2 in	1-1/2-11-1/2	1-1/8 in
5406-SHP-32	2 in	2-11-1/2	1.312 in
