06 SQUARE HEAD PIPE PLUG

Description & Features

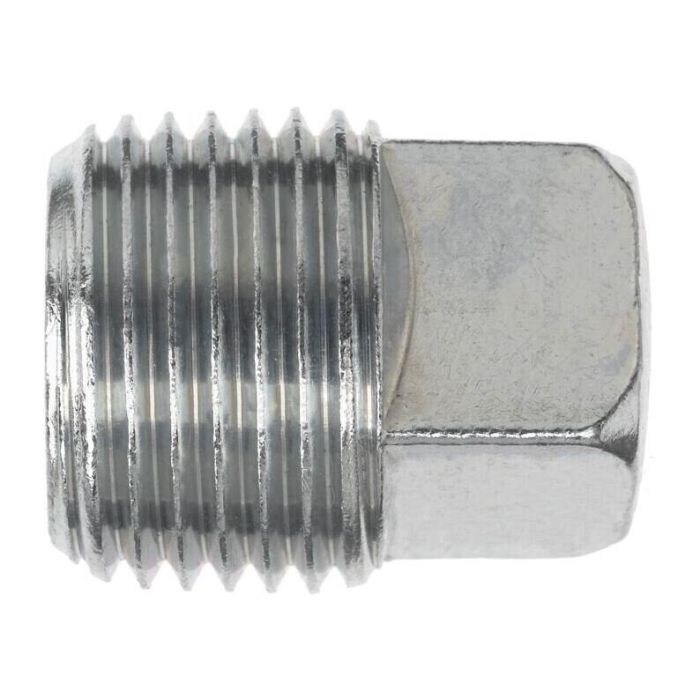

This straight steel 06 SQUARE HEAD PIPE PLUG features 3/8-18 threads conforming to SAE J476 specifications. Designed for male NPTF connections, this pipe plug ensures a secure and reliable seal in hydraulic applications.

This component is part of the 5406-SHP series and has an overall length of 0.780 inches, with a thread drill size of 0.406 inches.

SKU: 5406-SHP-06

Supplier Part Number (MPN): 5406-SHP-06

Specifications

Brand BRENNAN	Connection Size 1 3/8 in	Connection Type MNPT	Connection Type 1 Male NPTF	Dimension Standards SAE J476	Dimensions 0.84 in L	Finish Trivalent Zinc-Plated	Fitting Type Plug	Hex Size 7/16 in	l Dimensions 0.78 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Maximum Operating Pressure 6000 psi	Series 5406-SHP Series	Thread B1 Drill Dimensions 0.406 in	Thread Size 3/8-18

Product Questions & Answers (1)

Question by: Warren A on Oct 3, 2025, 6:17 AM

What kind of steel is this plug made from?

Answer by: Customer Support on Oct 4, 2025, 1:27 PM

This straight steel pipe plug is crafted from, well, straight steel, ensuring it'll hold up in demanding hydraulic setups.
