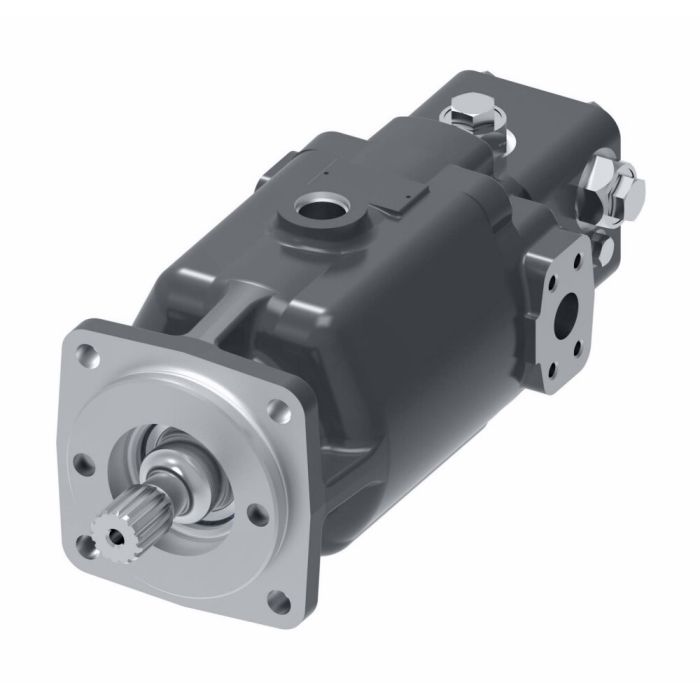

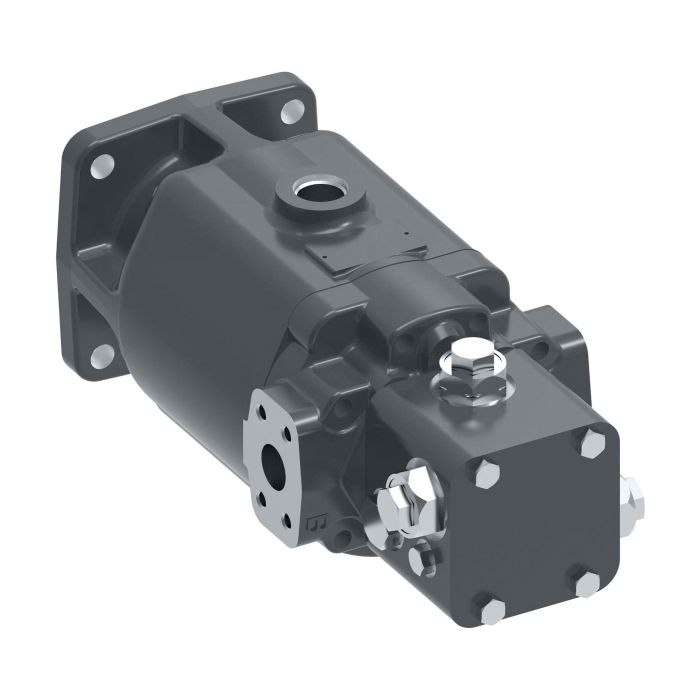

Danfoss / Eaton-M54 Hi-Speed FXD MTR FC

Ask A Question

Description & Features

A cast iron, high-speed fixed axial-piston motor designed for demanding mobile and industrial drive applications, the Danfoss / Eaton-M54 Hi-Speed FXD MTR FC delivers a torque rating of 556 Nm with a maximum flow rate of 84.1 gallons per minute. Its compact construction supports installation in space-constrained equipment where reliable, consistent output is required.

Pro-FX ready architecture enables dynamic machine control integration, making this motor well-suited for electronically managed drive systems. Typical applications span a broad range of heavy equipment, including transit mixers, road rollers, motor graders, dozers, cranes, sweepers, lift trucks, tractors, windrowers, planters, and marine and oil and gas platforms. The cast iron housing provides the structural durability expected in continuous-duty mobile hydraulic circuits.

SKU: 5433-068

Supplier Part Number (MPN): 5433-068

Specifications

Brand
Danfoss
Bearing Type
Roller
Color
Blue
Design Code
B
Design Type
Fixed Clearance
Dimensions
15.69 in L x 7.86 in W x 7.88 in H
Housing Material
Iron
Mounting Type
4-Bolt Flanged
Paint
Primer
Segment Code
C
Series
HHD Series
Shaft Type
Splined
Valve Type
Standard Charge Pressure Relief

Product Questions & Answers (1)

Question by: Johnny H on Dec 23, 2025, 12:56 PM
Wondering if this motor can handle continuous use in a hydraulic system for a transit mixer?
Answer by: Customer Support on Dec 25, 2025, 6:13 AM
Cast iron construction means it's built for the kind of durability you need in continuous-duty mobile hydraulic circuits, like on a transit mixer.
