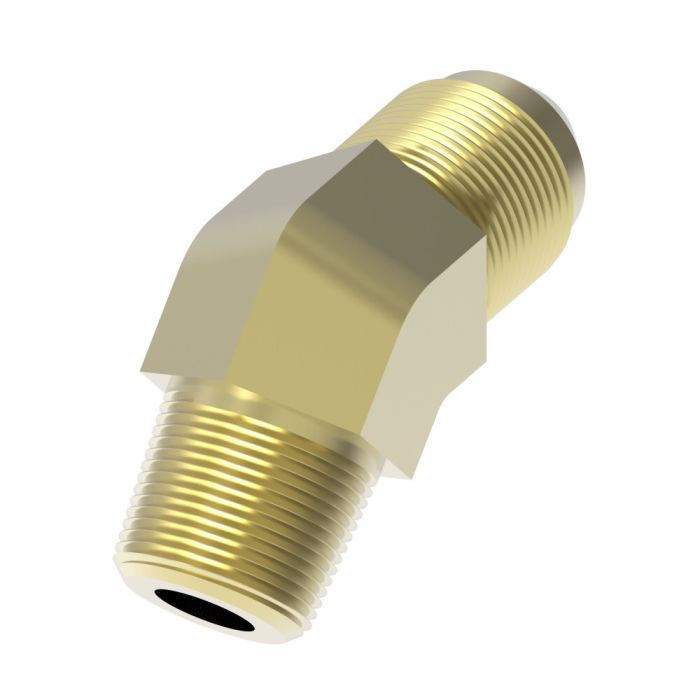

Constructed from brass with Dura-Kote plating for corrosion resistance, this NPTF Male/SAE Male 45° Male Elbow adapter from Eaton Aeroquip is built for demanding fluid and gas handling applications. The 1/8" NPTF male end pairs with a -5 SAE 45° flare male end, making it well-suited for routing lines where a directional change is required without sacrificing connection integrity.
Rated for use across a wide range of systems, including hydraulic, pneumatic, instrumentation, refrigeration, and power steering, this adapter meets Ms, Asa, SAE 010302, and Asme certifications and is rated to perform down to -65°F. Eaton Aeroquip's design delivers operating pressures above standard SAE requirements, and the broad range of available styles in this product family supports flexible circuit layout in compact or constrained installations.
SKU: 54X5
Supplier Part Number (MPN): 54X5
|
Application
LP and natural gas,
flammable liquids (special order), instrumentation, refrigeration, power steering, hydraulic and pneumatic systems. |
Certifications
MS|ASA|SAE 010302|ASME
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 1
0.13
|
End Size 2
0.50
|
End Type 1
NPTF
|
End Type 2
SAE
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
ICC
Elbow Adapters
|
Item Type
NPTF Male/SAE Male 45°° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
60
|
Product Material
Brass
|
Product Width
0.53
|
Sub Brand
None
|
Supplier Part Number
54X5
|
Product Weight
0.08 lbs
|
