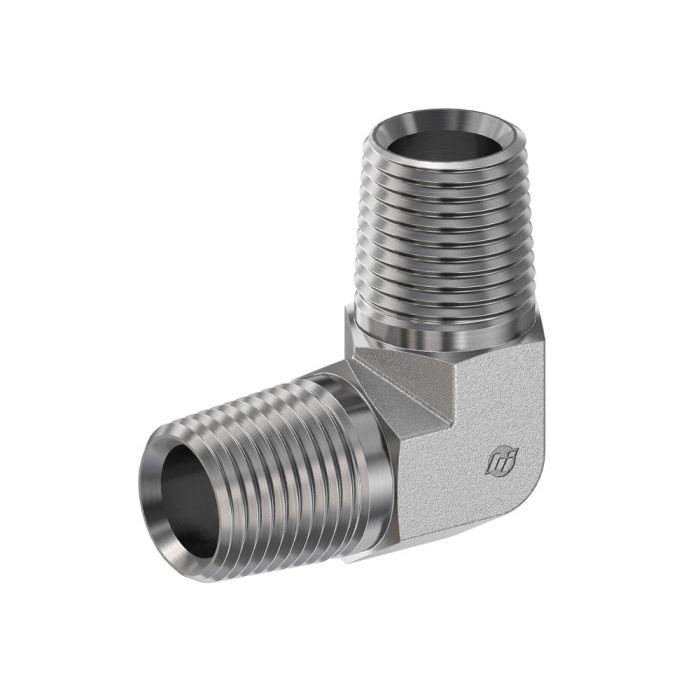

main product photo

06MP-04MP 90 DEG Elbow

Ask A Question

Description & Features

This 06MP-04MP 90 DEG Elbow by Brennan Industries Inc. is expertly crafted from steel forging. Its maximum dynamic pressure capacity is 6 000 PSI ensuring robust performance under demanding conditions.

The 90 elbow features threads with SAE J476 specifications both B1 and B2 types being Male NPTF. Thread B1 measures 3/8-18 with a drill diameter of 0.406 mm while Thread B2 is 1/4-18 with a drill diameter of 0.281 mm.

The component measures 1.220 mm in centerline length and overall length occupying 1.908 cubic inches of space. The product ensures reliable and safe usage in industrial environments because of its durable construction.

Supplier Part Number: 5500-06-04-FG

California Residents: PROP-65 WARNING

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Cubic Inch Space L x W x H Dimensions
1.908 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.22 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
3/4 in
l Dimensions
1.22 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Series
5500-FG Series
Thread 2 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
3/8-18 x 1/4-18

Product Questions & Answers (1)

Question by: Ricky B on Dec 26, 2025, 7:17 AM
Will this fitting hold up to the pressure in my hydraulic system? It runs pretty hard.
Answer by: Customer Support on Dec 27, 2025, 7:58 PM
With a maximum dynamic pressure capacity of 6000 PSI, this elbow is built to handle demanding hydraulic conditions. It's made from steel forging, which adds to its durability.
