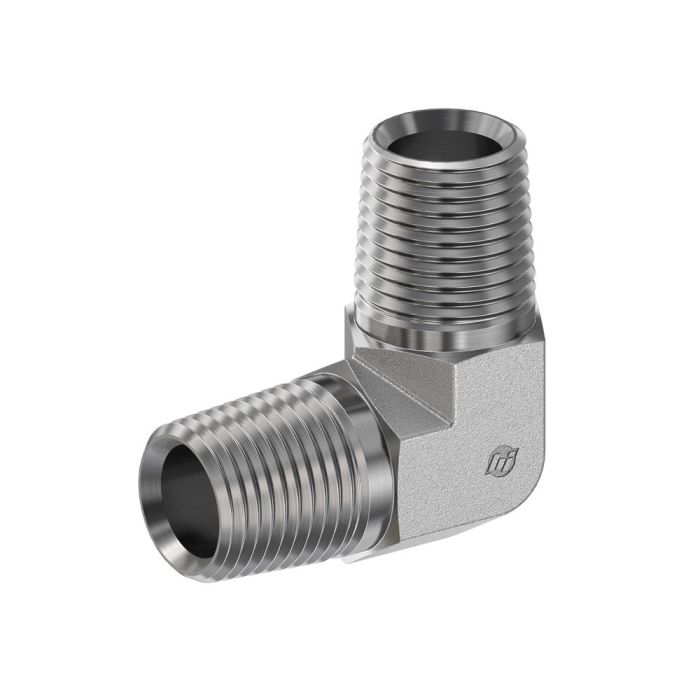

main product photo

08MP-04MP 90 DEG Elbow

Ask A Question

Description & Features

The BRENNAN INDUSTRIES INC 5500-08-04-FG is a high-quality 08MP-04MP 90deg Elbow Forged designed to meet rigorous industry standards. Manufactured from durable steel forging this elbow features a 90 bend that ensures optimal flow direction in industrial applications.

The product offers a centerline length of 1.470 mm and an overall length of 1.280 mm making it compact yet highly functional. With a maximum dynamic pressure capacity of 6 000 psi it is suitable for demanding environments.

Threaded with both B1 and B2 Male NPTF connections the elbow adheres to SAE J476 specifications. The B1 thread size measures 1/2-14 while the B2 thread size is 1/4-18 providing reliable and secure fittings.

This product occupies a cubic inch space of 2.867 and is featured in the 5500-FG series ensuring compatibility with other components in the series.

MPN: 5500-08-04-FG

Supplier Part Number: 5500-08-04-FG

California Residents: PROP-65 WARNING

Specifications

Brand
BRENNAN
a Dimensions
1.47 in
b Dimensions
1.28 in
Connection Size 1
1/2 in
Connection Size 2
1/4 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Cubic Inch Space L x W x H Dimensions
2.867 cu-in
Dimension Standards
SAE J476/J514
Dimensions
1.28 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
7/8 in
l Dimensions
1.28 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Series
5500-FG Series
Thread 2 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.531 in
Thread Sealant
Without Thread Sealant
Thread Size
1/2-14 x 1/4-18

Product Questions & Answers (2)

Question by: Lynn M on Jun 18, 2025, 6:29 PM
Will this elbow handle a constant 6000 PSI?
Answer by: Customer Support on Jun 20, 2025, 10:51 AM
This 90-degree elbow is rated to handle a maximum dynamic pressure of 6,000 psi.
Question by: Donna M on Nov 2, 2025, 5:25 PM
what's the pressure rating on this elbow, and is it gonna hold up on a hydraulic line running pretty steady?
Answer by: Customer Support on Nov 4, 2025, 12:34 PM
Rated at 6,000 psi maximum dynamic pressure, so it handles continuous hydraulic service without issue in most industrial setups. The forged steel construction gives it solid durability under sustained load, not just occasional spikes. As long as your system stays within that 6,000 psi ceiling, you're in good shape.
