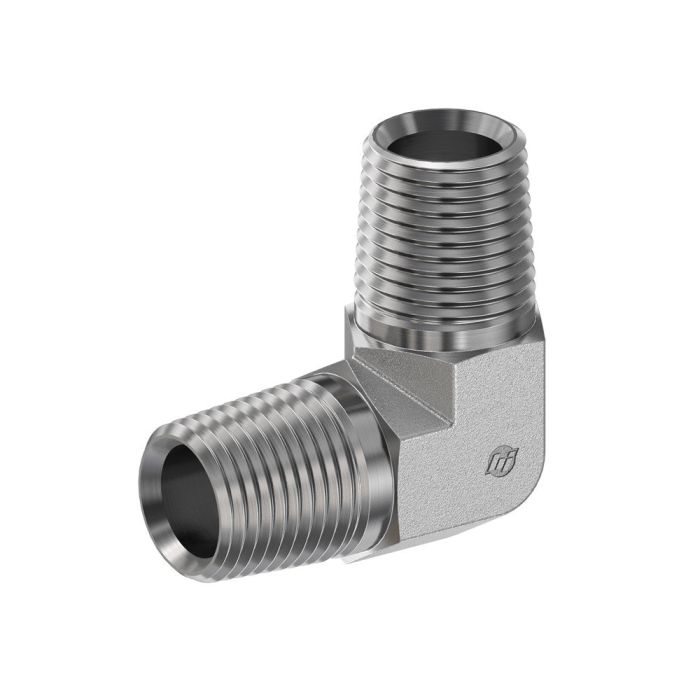

main product photo

08MP-06MP 90 DEG Elbow

Ask A Question

Description & Features

Crafted from high-quality steel forging this 08MP-06MP 90 Elbow is designed to withstand challenging industrial conditions ensuring durability and efficiency in demanding applications. Featuring a 1.470 mm centerline length and a 1.280 mm overall length this elbow fits seamlessly into compact spaces.

This elbow supports a maximum dynamic pressure of 6 000 psi making it suitable for high-pressure environments. The product features Male NPTF threads that conform to SAE J476 specifications ensuring compatibility and secure fittings. Thread sizes include 1/2-14 and 3/8-18 with corresponding drill sizes of 0.531 mm and 0.406 mm respectively.

The elbow's cubic inch space measures 2.867 optimizing space utilization without compromising performance. Compliance with PROP-65 ensures it meets safety regulations for California residents.

Supplier Part Number: 5500-08-06-FG

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Cubic Inch Space L x W x H Dimensions
2.867 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.28 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
7/8 in
l Dimensions
1.28 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Series
5500-FG Series
Thread 2 Drill Dimensions
0.406 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14 x 3/8-18

Product Questions & Answers (2)

Question by: Ross W on Dec 9, 2025, 9:03 PM
Will this elbow handle a constant 6000 PSI without failin?
Answer by: Customer Support on Dec 11, 2025, 6:58 AM
This 08MP-06MP elbow is rated to a maximum dynamic pressure of 6,000 psi so it should hold up for you, yeah.
Question by: Shawn R on May 10, 2025, 7:09 AM
Does this elbow handle high-pressure hydraulic lines, or is it more of a low-pressure fitting?
Answer by: Customer Support on May 12, 2025, 6:38 AM
Rated at 6,000 psi maximum dynamic pressure, it holds up fine in demanding hydraulic systems. The forged steel construction keeps it solid under that kind of load, so it's not just a light-duty piece. If your line runs at or below that threshold, you're in good shape with this fitting.
