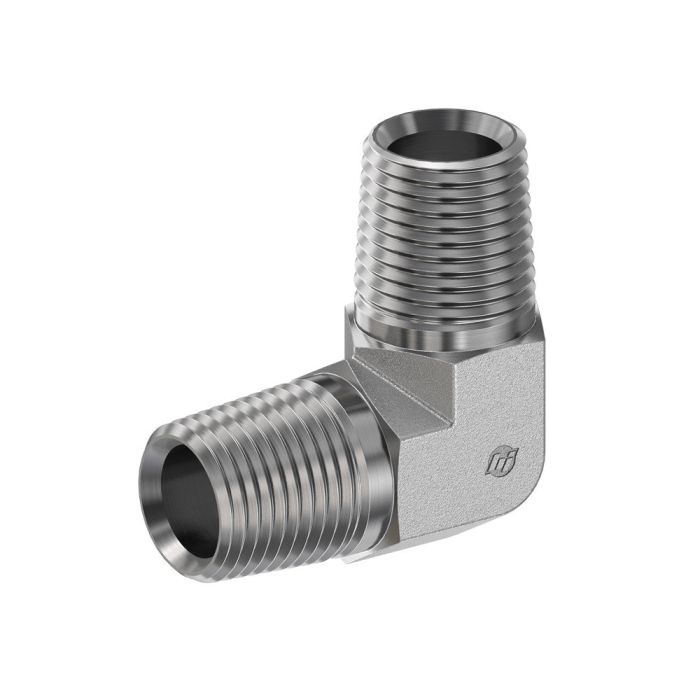

08MP-08MP 90 DEG Elbow

Description & Features

BRENNAN INDUSTRIES INC 5500-08-08-FG offers unparalleled durability and reliability with its forged steel construction making it ideal for high-pressure applications. This fitting features a 08MP-08MP 90 DEG Elbow designed to handle a maximum dynamic pressure of up to 6 000 psi.

The elbow measures at an overall length of 1.470 mm while the centerline length is also 1.470 mm ensuring precision in space-constrained industrial environments. Both ends of the elbow have a thread size of 1/2-14 adhering to SAE J476 specifications with Male NPTF threads allowing for secure connections.

Its cubic inch space dimensions (L x W x H) are 3.184 designed to optimize the spatial requirements in various setups. This fitting is part of the 5500-FG series known for its robust performance and longevity. The threaded drill dimensions for both ends measure 0.531 mm maintaining compatibility and uniformity across similar fittings.

Supplier Part Number: 5500-08-08-FG

California Residents: PROP-65 WARNING

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Cubic Inch Space L x W x H Dimensions
3.184 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.47 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
7/8 in
l Dimensions
1.47 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Series
5500-FG Series
Thread 2 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14

Similar Products

Model Number Connection Size 1 Connection Size 2 Finish Thread Size Hex Size Price Action
02MP-02MP 90 DEG Elbow

5500-02-02-FG

1/8 in

1/8 in

Trivalent Zinc-Plated

1/8-27

7/16 in

Steel Adapter, 1/4-18 Male NPT To 1/8-27 Male NPT, 90 deg Elbow

5500-04-02 Steel Male NPT 90 deg Elbow

1/4 in

1/8 in

Trivalent Zinc-Plated

1/4-18 x 1/8-27

0.563 in

04MP-04MP 90 DEG ELBOW

5500-04-04-FG

1/4 in

1/4 in

Trivalent Zinc-Plated

1/4-18

0.563 in

06MP-04MP 90 DEG Elbow

5500-06-04-FG

3/8 in

1/4 in

Trivalent Zinc-Plated

3/8-18 x 1/4-18

3/4 in

06MP-06MP 90 DEG Elbow

5500-06-06-FG

3/8 in

3/8 in

Trivalent Zinc-Plated

3/8-18

3/4 in

08MP-04MP 90 DEG Elbow

5500-08-04-FG

1/2 in

1/4 in

Trivalent Zinc-Plated

1/2-14 x 1/4-18

7/8 in

08MP-06MP 90 DEG Elbow

5500-08-06-FG

1/2 in

3/8 in

Trivalent Zinc-Plated

1/2-14 x 3/8-18

7/8 in

5500-12-08-FG

5500-12-08-FG

3/4 in

1/2 in

Trivalent Zinc-Plated

3/4-14 x 1/2-14

5500-12-12-FG

5500-12-12-FG

3/4 in

3/4 in

Trivalent Zinc-Plated

3/4-14

1.06 in

16MP-12MP 90 DEG ELBOW

5500-16-12-FG

1 in

3/4 in

Trivalent Zinc-Plated

1-11-1/2 x 3/4-14

1.312 in

#16 mp x #16 mp 90*

5500-16-16-FG

1 in

1 in

Trivalent Zinc-Plated

1-11-1/2

1.312 in

#20 MP X #20 MP 90*

5500-20-20-FG

1-1/4 in

1-1/4 in

Trivalent Zinc-Plated

1-1/4-11-1/2

1-5/8

#24 MP X #24 MP 90*

5500-24-24-FG

1-1/2 in

1-1/2 in

Trivalent Zinc-Plated

1-1/2-11-1/2

1-7/8 in

32MP-32MP 90 DEG ELBOW

5500-32-32-FG

2 in

2 in

Zinc-Plated

2-11-1/2

2-1/2 in

Product Questions & Answers (1)

Question by: Jerry P on Nov 16, 2025, 3:50 PM
got a 1/2-14 male nptf line and need to turn it 90, is this the right elbow for that?
Answer by: Customer Support on Nov 18, 2025, 6:13 AM
For a 90 degree turn with 1/2-14 Male NPTF threads on both ends, this fitting matches that setup. Both ports are 1/2-14 per SAE J476, so it is a straight thread-to-thread elbow with the same size on each side.
