5500-12-08-FG

Description & Features

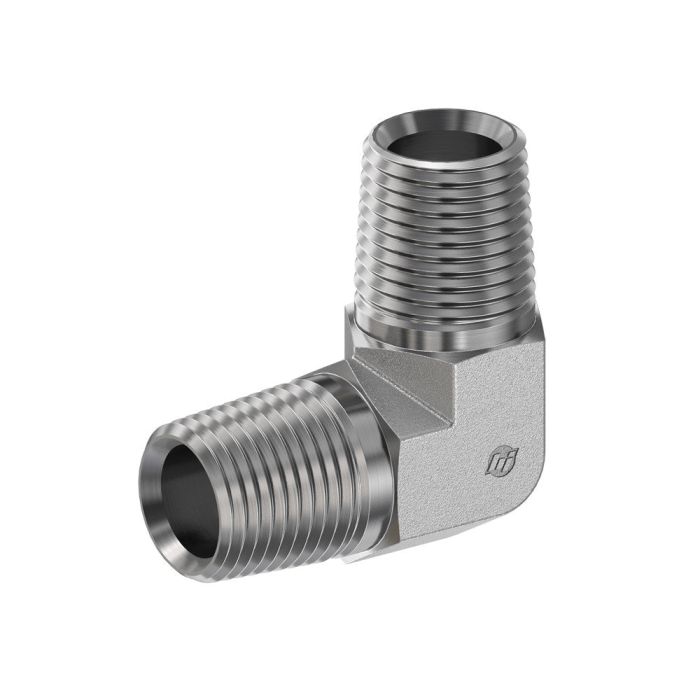

A 90-degree male-to-male elbow fitting connecting a 12 MP port to an 8 MP port, the 5500-12-08-FG is manufactured by Brennan Industries for use in hydraulic line routing where a right-angle transition between two male threaded connections is required. The reduced port configuration allows for a size step-down within a single fitting, eliminating the need for additional adapters in compact assemblies.

Suited for hydraulic systems where directional changes and thread-size transitions must be handled at a single connection point, this fitting is a practical solution for tight routing layouts in industrial equipment and machinery.

SKU: 5500-12-08

Supplier Part Number (MPN): 5500-12-08-FG

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Series
5500-FG Series
Thread Size
3/4-14 x 1/2-14

Similar Products

Model Number Connection Size 1 Connection Size 2 Finish Thread Size Hex Size Price Action
02MP-02MP 90 DEG Elbow

5500-02-02-FG

1/8 in

1/8 in

Trivalent Zinc-Plated

1/8-27

7/16 in

Steel Adapter, 1/4-18 Male NPT To 1/8-27 Male NPT, 90 deg Elbow

5500-04-02 Steel Male NPT 90 deg Elbow

1/4 in

1/8 in

Trivalent Zinc-Plated

1/4-18 x 1/8-27

0.563 in

04MP-04MP 90 DEG ELBOW

5500-04-04-FG

1/4 in

1/4 in

Trivalent Zinc-Plated

1/4-18

0.563 in

06MP-04MP 90 DEG Elbow

5500-06-04-FG

3/8 in

1/4 in

Trivalent Zinc-Plated

3/8-18 x 1/4-18

3/4 in

06MP-06MP 90 DEG Elbow

5500-06-06-FG

3/8 in

3/8 in

Trivalent Zinc-Plated

3/8-18

3/4 in

08MP-04MP 90 DEG Elbow

5500-08-04-FG

1/2 in

1/4 in

Trivalent Zinc-Plated

1/2-14 x 1/4-18

7/8 in

08MP-06MP 90 DEG Elbow

5500-08-06-FG

1/2 in

3/8 in

Trivalent Zinc-Plated

1/2-14 x 3/8-18

7/8 in

08MP-08MP 90 DEG Elbow

5500-08-08-FG

1/2 in

1/2 in

Trivalent Zinc-Plated

1/2-14

7/8 in

5500-12-12-FG

5500-12-12-FG

3/4 in

3/4 in

Trivalent Zinc-Plated

3/4-14

1.06 in

16MP-12MP 90 DEG ELBOW

5500-16-12-FG

1 in

3/4 in

Trivalent Zinc-Plated

1-11-1/2 x 3/4-14

1.312 in

#16 mp x #16 mp 90*

5500-16-16-FG

1 in

1 in

Trivalent Zinc-Plated

1-11-1/2

1.312 in

#20 MP X #20 MP 90*

5500-20-20-FG

1-1/4 in

1-1/4 in

Trivalent Zinc-Plated

1-1/4-11-1/2

1-5/8

#24 MP X #24 MP 90*

5500-24-24-FG

1-1/2 in

1-1/2 in

Trivalent Zinc-Plated

1-1/2-11-1/2

1-7/8 in

32MP-32MP 90 DEG ELBOW

5500-32-32-FG

2 in

2 in

Zinc-Plated

2-11-1/2

2-1/2 in

Product Questions & Answers (1)

Question by: Lee B on Jan 20, 2026, 12:21 PM
Will this elbow fitting work to connect a 12 MP port to an 8 MP port at a 90-degree angle?
Answer by: Customer Support on Jan 22, 2026, 10:24 AM
Exactly right – this 90-degree elbow is specifically designed to transition between a 12 MP port and an 8 MP port, letting you make that right-angle turn without needing extra adapters.
