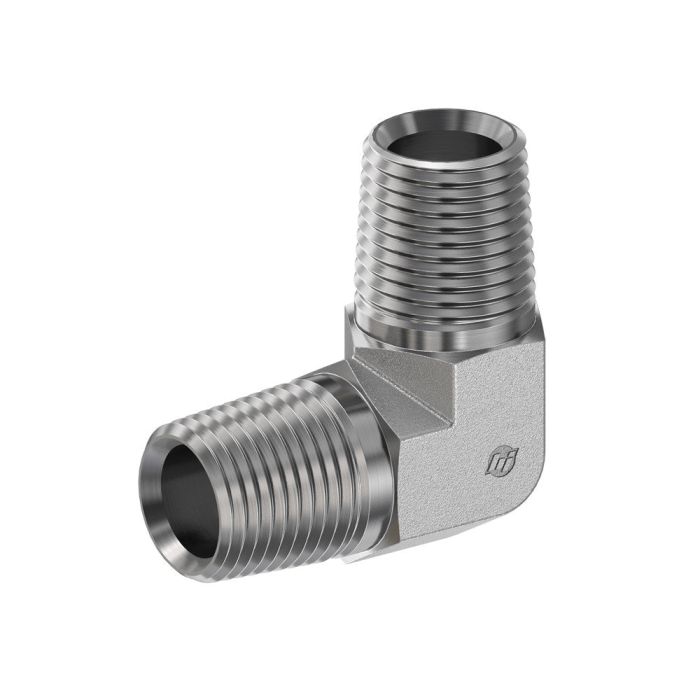

main product photo

5500-12-12-FG

Ask A Question

Description & Features

Manufactured by Brennan Industries, this forged 90-degree male pipe elbow provides a reliable direction change in hydraulic and industrial fluid systems. The 12 MP x 12 MP configuration connects two 3/4-inch male pipe threads at a right angle, making it well suited for tight routing situations where a straight fitting would be impractical.

Forged construction offers greater strength and material integrity compared to cast alternatives, supporting dependable performance under the pressures typical of hydraulic circuits and industrial fluid lines. The all-male thread configuration, product 5500-12-12-FG, is designed for use with corresponding female pipe thread ports or adapters.

SKU: 5500-12-12-FG

Supplier Part Number (MPN): 5500-12-12-FG

Alternate Part Numbers: 5500-12-12, A2085-12-12S

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.06 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Series
5500-FG Series
Thread Size
3/4-14

Product Questions & Answers (1)

Question by: Glen M on Feb 23, 2026, 8:56 AM
Reckon this elbow fitting will hold up okay in a hydraulic system running around 2000 PSI? Just wanna make sure it's tough enough.
Answer by: Customer Support on Feb 25, 2026, 7:07 AM
Forged construction gives this elbow fitting good strength for hydraulic systems. It's designed to handle the pressures typical in those types of circuits and industrial fluid lines.
