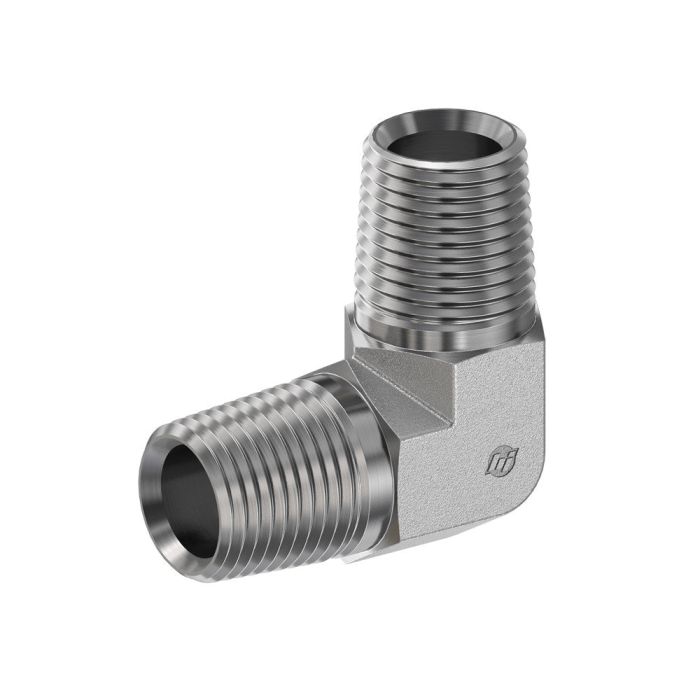

16MP-12MP 90 DEG ELBOW

Description & Features

Constructed from durable steel forging, this 16MP-12MP 90 DEG ELBOW is designed for demanding industrial applications where reliable performance is essential. The elbow features a 90-degree angle, facilitating efficient fluid direction in complex hydraulic systems. With a maximum dynamic pressure rating of 3,000 PSI, it ensures robust operation under high-pressure conditions.

The elbow incorporates precision-engineered threads: a 1-11-1/2 male NPTF thread on one end and a 3/4-14 male NPTF thread on the other, both conforming to the SAE J476 specification. This ensures compatibility with a wide range of fittings, enhancing versatility in various setups. The compact design, with a centerline length of 1.970 mm and overall length of 1.780 mm, allows for space-efficient installation.

SKU: 5500-16-12-FG

Supplier Part Number (MPN): 5500-16-12-FG

Alternate Part Numbers: 5500-16-12, A2085-16-12S

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
3/4 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Cubic Inch Space L x W x H Dimensions
8.393 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.78 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.312 in
l Dimensions
1.78 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
5500-FG Series
Thread 2 Drill Dimensions
0.719 in
Thread B1 Drill Dimensions
0.938 in
Thread Size
1-11-1/2 x 3/4-14

Similar Products

Model Number Connection Size 1 Connection Size 2 Finish Thread Size Hex Size Price Action
02MP-02MP 90 DEG Elbow

5500-02-02-FG

1/8 in

1/8 in

Trivalent Zinc-Plated

1/8-27

7/16 in

Steel Adapter, 1/4-18 Male NPT To 1/8-27 Male NPT, 90 deg Elbow

5500-04-02 Steel Male NPT 90 deg Elbow

1/4 in

1/8 in

Trivalent Zinc-Plated

1/4-18 x 1/8-27

0.563 in

04MP-04MP 90 DEG ELBOW

5500-04-04-FG

1/4 in

1/4 in

Trivalent Zinc-Plated

1/4-18

0.563 in

06MP-04MP 90 DEG Elbow

5500-06-04-FG

3/8 in

1/4 in

Trivalent Zinc-Plated

3/8-18 x 1/4-18

3/4 in

06MP-06MP 90 DEG Elbow

5500-06-06-FG

3/8 in

3/8 in

Trivalent Zinc-Plated

3/8-18

3/4 in

08MP-04MP 90 DEG Elbow

5500-08-04-FG

1/2 in

1/4 in

Trivalent Zinc-Plated

1/2-14 x 1/4-18

7/8 in

08MP-06MP 90 DEG Elbow

5500-08-06-FG

1/2 in

3/8 in

Trivalent Zinc-Plated

1/2-14 x 3/8-18

7/8 in

08MP-08MP 90 DEG Elbow

5500-08-08-FG

1/2 in

1/2 in

Trivalent Zinc-Plated

1/2-14

7/8 in

5500-12-08-FG

5500-12-08-FG

3/4 in

1/2 in

Trivalent Zinc-Plated

3/4-14 x 1/2-14

5500-12-12-FG

5500-12-12-FG

3/4 in

3/4 in

Trivalent Zinc-Plated

3/4-14

1.06 in

#16 mp x #16 mp 90*

5500-16-16-FG

1 in

1 in

Trivalent Zinc-Plated

1-11-1/2

1.312 in

#20 MP X #20 MP 90*

5500-20-20-FG

1-1/4 in

1-1/4 in

Trivalent Zinc-Plated

1-1/4-11-1/2

1-5/8

#24 MP X #24 MP 90*

5500-24-24-FG

1-1/2 in

1-1/2 in

Trivalent Zinc-Plated

1-1/2-11-1/2

1-7/8 in

32MP-32MP 90 DEG ELBOW

5500-32-32-FG

2 in

2 in

Zinc-Plated

2-11-1/2

2-1/2 in
