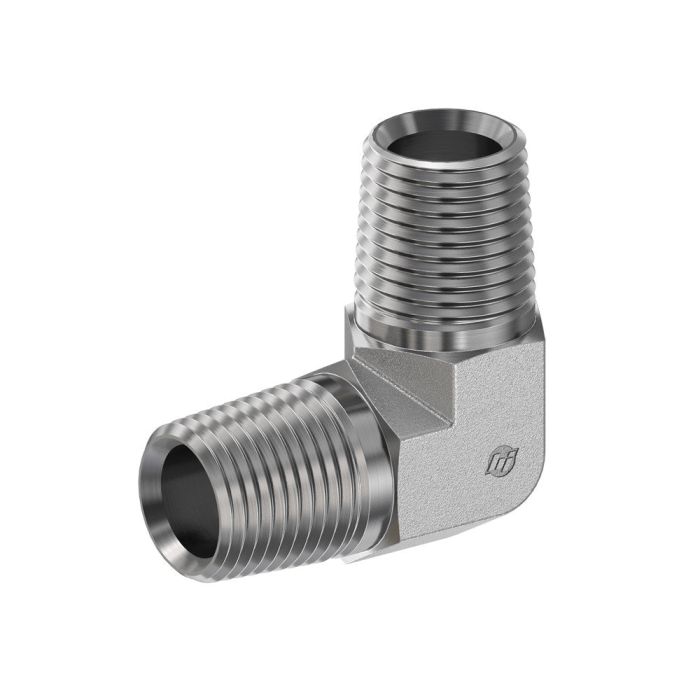

main product photo

#20 MP X #20 MP 90*

Ask A Question

Description & Features

The #20 MP X #20 MP 90* from Brennan Industries Inc is a highly reliable elbow forged from quality steel. This component is crucial for systems requiring a 90-degree connection with male NPTF threads. The product meets the SAE J476 specification ensuring it adheres to industry standards.

With an overall length and centerline length of 2.380 mm this steel forging is designed for rugged applications supporting a maximum dynamic pressure of up to 3 000 psi. The male-threaded connections ensure secure and efficient fluid transfer in various industrial settings.

This elbow forged fitting is categorized under Series 5500-FG making it a valuable addition to your machinery or equipment. The compact cubic inch space (16.562) allows for optimal space utilization without compromising performance.

MPN: 5500-20-20-FG

Supplier Part Number: 5500-20-20-FG

Specifications

Brand
BRENNAN
a Dimensions
2.38 in
b Dimensions
2.38 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Cubic Inch Space L x W x H Dimensions
16.562 cu-in
Dimension Standards
SAE J476/J514
Dimensions
2.38 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-5/8
l Dimensions
2.38 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
2500 psi
Series
5500-FG Series
Thread 2 Drill Dimensions
1-1/4 in
Thread B1 Drill Dimensions
1-1/4 in
Thread Sealant
Without Thread Sealant
Thread Size
1-1/4-11-1/2

Product Questions & Answers (1)

Question by: Scott W on Jun 13, 2025, 7:35 PM
Will this fitting hold up okay if I run it at or close to that 3000 psi rating?
Answer by: Customer Support on Jun 15, 2025, 8:01 AM
This elbow fitting is rated to handle dynamic pressures up to 3,000 psi, making it suitable for systems operating near that level. Just be sure your system is properly maintained to avoid pressure spikes.
