#24 MP X #24 MP 90*

Description & Features

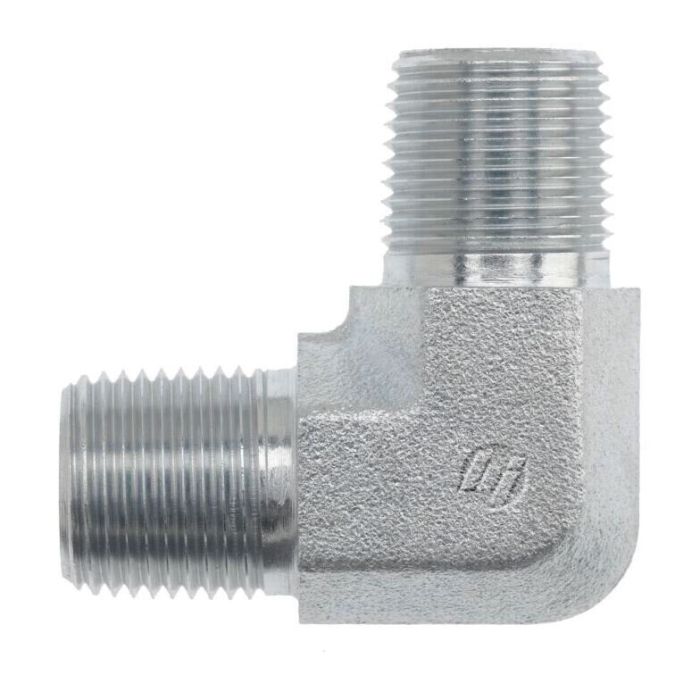

Forged from steel, this 90-degree male NPTF elbow is built for hydraulic and industrial fluid systems requiring a right-angle directional change at large-bore connections. Both ports carry 1-1/2–11-1/2 male NPTF threads conforming to SAE J476, providing a pressure-tight dry-seal fit without the need for additional sealant in properly mated connections. The #24 MP x #24 MP 90° elbow is rated to 3,000 PSI maximum dynamic pressure, making it suitable for demanding medium- to high-pressure hydraulic circuits.

Manufactured in the Brennan Industries 5500-Fg series, the forged steel construction offers greater structural integrity than cast alternatives, an important consideration at this port size. The fitting carries a Proposition 65 warning for California residents.

SKU: 5500-24-24-FG

Supplier Part Number (MPN): 5500-24-24-FG

Alternate Part Numbers: 5500-24-24, A2085-24-24S, C1EF64

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 5500-24-24-FG	Product Weight 2.10 lbs

Product Questions & Answers (3)

Question by: Stan E on Dec 9, 2025, 7:31 PM

trying to swap out an elbow on a big line, are both ends on this one 1-1/2 male nptf?

Answer by: Customer Support on Dec 11, 2025, 9:03 AM

Both ports are 1-1/2-11-1/2 male NPTF threads, and they follow SAE J476. It is a 90 degree elbow with male NPTF on each end.

Question by: Tommy R on Oct 4, 2025, 11:36 AM

Will this fitting hold up for a hydraulic system running at 2500 PSI?

Answer by: Customer Support on Oct 6, 2025, 6:27 AM

This 90-degree elbow is rated for a maximum dynamic pressure of 3,000 PSI, so it should be suitable for your 2500 PSI system.

Question by: Kurt W on Jul 7, 2025, 8:35 PM

both ends on this thing are 1-1/2 inch male NPTF right? just want to make sure before I order

Answer by: Customer Support on Jul 9, 2025, 6:38 AM

Correct on both ports. Each end carries 1-1/2–11-1/2 male NPTF threads built to SAE J476, so you're getting a matching dry-seal fit on either side. No mismatched sizes to worry about with this one.
