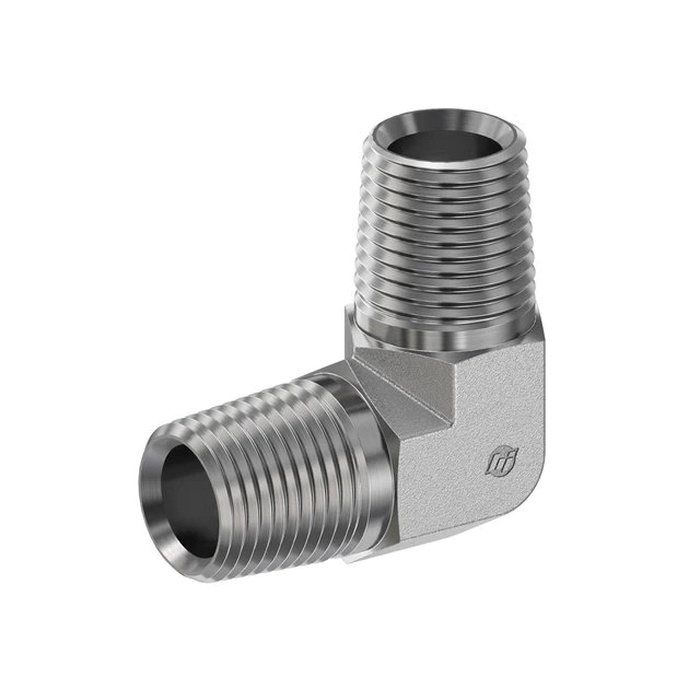

32MP-32MP 90 DEG ELBOW

Description & Features

This 32MP-32MP 90 DEG ELBOW features male NPTF threads on both ends, sized at 2-11-1/2. Constructed from durable steel forging, this elbow is part of the 5500-FG series.

Designed to withstand a maximum dynamic pressure of 2,000 PSI, this fitting ensures reliable performance in demanding hydraulic applications. The Brennan Centerline Length 1 Mm measures 3.000, with an Overall Length L Mm of 3.000. This elbow provides a robust solution for directional changes in hydraulic systems.

SKU: 5500-32-32-FG

Supplier Part Number (MPN): 5500-32-32-FG

Alternate Part Numbers: 5500-32-32, A2085-32-32S, BR-5500-32-32-FG

Specifications

Brand
BRENNAN
Connection Size 1
2 in
Connection Size 2
2 in
Connection Type
MNPT
Connection Type 1
Male SAE NPTF
Connection Type 2
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
45.156 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
3 in L
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
2-1/2 in
l Dimensions
3 in
Material
Steel
Material Construction
Forged Steel
Series
5500-FG Series
Thread 2 Drill Dimensions
1.938 in
Thread B1 Drill Dimensions
1.938 in
Thread Size
2-11-1/2

Similar Products

Model Number Connection Size 1 Connection Size 2 Finish Thread Size Hex Size Price Action
02MP-02MP 90 DEG Elbow

5500-02-02-FG

1/8 in

1/8 in

Trivalent Zinc-Plated

1/8-27

7/16 in

Steel Adapter, 1/4-18 Male NPT To 1/8-27 Male NPT, 90 deg Elbow

5500-04-02 Steel Male NPT 90 deg Elbow

1/4 in

1/8 in

Trivalent Zinc-Plated

1/4-18 x 1/8-27

0.563 in

04MP-04MP 90 DEG ELBOW

5500-04-04-FG

1/4 in

1/4 in

Trivalent Zinc-Plated

1/4-18

0.563 in

06MP-04MP 90 DEG Elbow

5500-06-04-FG

3/8 in

1/4 in

Trivalent Zinc-Plated

3/8-18 x 1/4-18

3/4 in

06MP-06MP 90 DEG Elbow

5500-06-06-FG

3/8 in

3/8 in

Trivalent Zinc-Plated

3/8-18

3/4 in

08MP-04MP 90 DEG Elbow

5500-08-04-FG

1/2 in

1/4 in

Trivalent Zinc-Plated

1/2-14 x 1/4-18

7/8 in

08MP-06MP 90 DEG Elbow

5500-08-06-FG

1/2 in

3/8 in

Trivalent Zinc-Plated

1/2-14 x 3/8-18

7/8 in

08MP-08MP 90 DEG Elbow

5500-08-08-FG

1/2 in

1/2 in

Trivalent Zinc-Plated

1/2-14

7/8 in

5500-12-08-FG

5500-12-08-FG

3/4 in

1/2 in

Trivalent Zinc-Plated

3/4-14 x 1/2-14

5500-12-12-FG

5500-12-12-FG

3/4 in

3/4 in

Trivalent Zinc-Plated

3/4-14

1.06 in

16MP-12MP 90 DEG ELBOW

5500-16-12-FG

1 in

3/4 in

Trivalent Zinc-Plated

1-11-1/2 x 3/4-14

1.312 in

#16 mp x #16 mp 90*

5500-16-16-FG

1 in

1 in

Trivalent Zinc-Plated

1-11-1/2

1.312 in

#20 MP X #20 MP 90*

5500-20-20-FG

1-1/4 in

1-1/4 in

Trivalent Zinc-Plated

1-1/4-11-1/2

1-5/8

#24 MP X #24 MP 90*

5500-24-24-FG

1-1/2 in

1-1/2 in

Trivalent Zinc-Plated

1-1/2-11-1/2

1-7/8 in

Product Questions & Answers (1)

Question by: Dean G on Jul 29, 2025, 7:24 AM
Reckon this'll hold up to a 2,000 PSI hydraulic system?
Answer by: Customer Support on Jul 30, 2025, 2:19 PM
Yes indeed, this elbow's forged steel is designed to handle a maximum dynamic pressure of 2,000 PSI.
