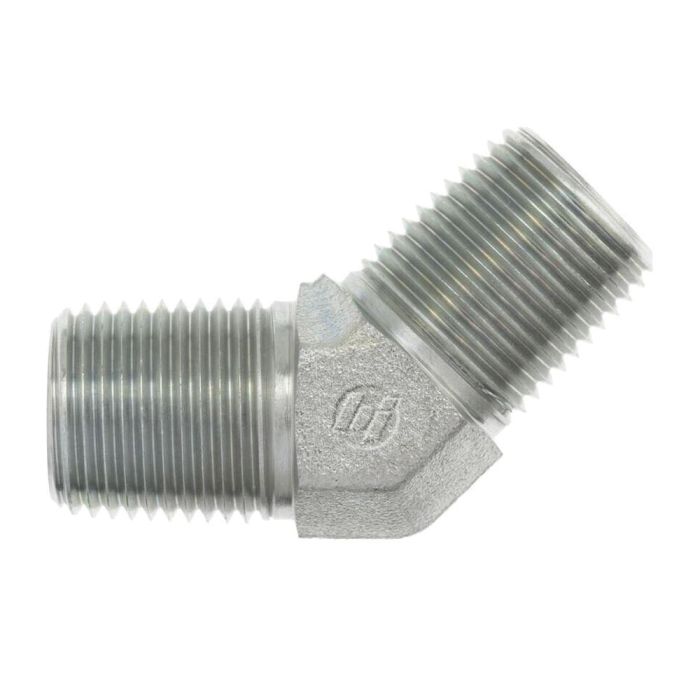

main product photo

24MP-24MP 45 DEG ELBOW

Ask A Question

Description & Features

Designed for robust industrial applications, this 45-degree elbow features male NPTF threads on both ends, conforming to SAE J476 specifications. Precision-engineered from steel forging, it provides exceptional durability and reliability in hydraulic systems. With a thread size of 1-1/2-11-1/2, this elbow offers seamless integration into compatible setups, ensuring secure connections and optimal performance.

The 24MP-24MP 45 DEG ELBOW is part of the 5501-FG series, known for its high-quality construction and precise machining. Measuring 1.770 mm in centerline length, it is designed to accommodate various industrial needs. Its sturdy construction and precise thread design make it ideal for demanding environments where dependable connections are critical.

SKU: 5501-24-24-FG

Supplier Part Number (MPN): 5501-24-24-FG

Alternate Part Numbers: 5501-24-24, A2247-24-24S, BR-5501-24-24

Specifications

Brand
BRENNAN
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1-7/8 in
l Dimensions
1.77 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
2500 psi
Series
5501-FG Series
Thread 2 Drill Dimensions
1.5 in
Thread B1 Drill Dimensions
1.5 in
Thread Size
1-1/2-11-1/2

Product Questions & Answers (1)

Question by: Neal A on Mar 29, 2026, 9:48 AM
Reckon this elbow'd be alright for runnin' hydraulic lines on my backhoe? Just need somethin' sturdy that won't leak.
Answer by: Customer Support on Mar 31, 2026, 6:21 AM
Designed for demanding industrial environments, this 45-degree elbow is made from steel forging, so it should provide the durability and secure connections you're looking for in a hydraulic system.
