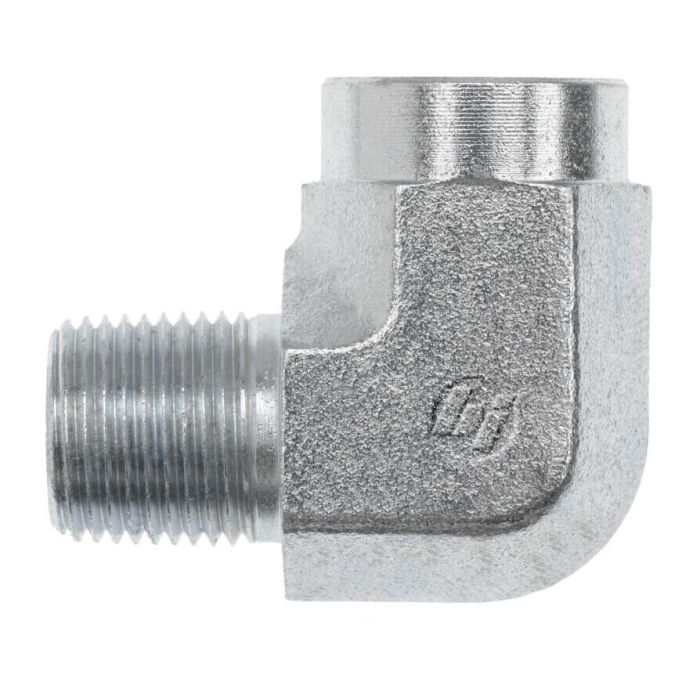

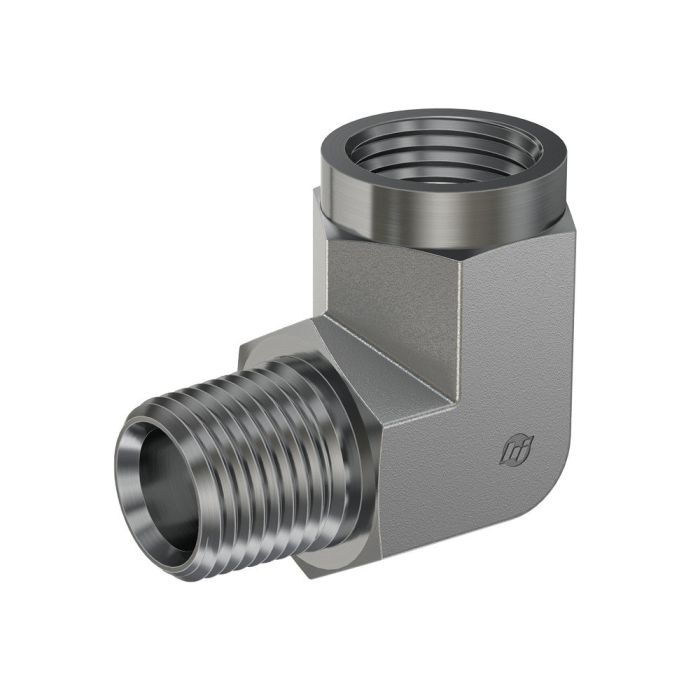

06MP-06FP 90 DEG STREET Elbow

Description & Features

The 06MP-06FP 90 DEG STREET Elbow by Brennan Industries Inc offers robust construction with steel forging ensuring durability under high pressure applications up to 6 000 psi. This street elbow is designed with a 90-degree angle facilitating efficient directional changes in industrial settings.

With male and female NPTF threads both conforming to SAE J476 specifications this street elbow guarantees reliable connections. The centerline length is 1.220 mm and its overall length is 1.020 mm making it suitable for various configurations.

Ideal for dynamic systems it supports seamless integration with other components. The threaded drill size 0.406 mm maintains compatibility across numerous applications enhancing its versatility within industry standards.

Supplier Part Number: 5502-06-06-FG

MPN: 5502-06-06-FG

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
2.114 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.02 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
7/8 in
l Dimensions
1.02 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4500 psi
Series
5502-FG Series
Thread 2 Drill Dimensions
0.406 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
3/8-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
02MP-02FP 90 DEG STREET Elbow

5502-02-02-FG

1/8 in

1/8 in

1/8-27

0.563 in

02MP-04FP 90 DEG STREET ELBOW

5502-02-04

1/8 in

1/4 in

1/4-18 x 1/8-27

3/4 in

04MP-02FP 90 DEG STREET ELBOW

5502-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

0.563 in

04MP-04FP 90 DEG STREET Elbow

5502-04-04-FG

1/4 in

1/4 in

1/4-18

3/4 in

04MP-06FP 90 DEG STREET ELBOW

5502-04-06

1/4 in

3/8 in

3/8-18 x 1/4-18

7/8 in

06MP-04FP 90 DEG STREET ELBOW

5502-06-04-FG

3/8 in

1/4 in

3/8-18 x 1/4-18

7/8 in

06MP-08FP 90 DEG STREET ELBOW

5502-06-08-FG

3/8 in

1/2 in

1/2-14 x 3/8-18

1.06 in

#8 MP X #4 FP (RIGID) 90*

5502-08-04

1/2 in

1/4 in

1/2-14 x 1/4-18

7/8 in

08MP-08FP 90 DEG STREET Elbow

5502-08-08-FG

1/2 in

1/2 in

1/2-14

1.06 in

Forged Steel 90 Degree Street Elbow Tube

5502-12-06-FG

3/4 in

3/8 in

3/4-14 x 3/8-18

1.06 in

12MP-08FP 90 DEG STREET ELBOW

5502-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

1.06 in

12MP-12FP 90 DEG STREET Elbow

5502-12-12-FG

3/4 in

3/4 in

3/4-14

1.312 in

12MP-16FP 90 DEG STREET ELBOW

5502-12-16-FG

3/4 in

1 in

1-11-1/2 x 3/4-14

1-5/8

16MP-16FP 90 DEG STREET Elbow

5502-16-16-FG

1 in

1 in

1-11-1/2

1-5/8

20MP-20FP 90 STREET ELB

5502-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-7/8 in

24MP-24FP 90 DEG STREET Elbow

5502-24-24-FG

1-1/2 in

1-1/2 in

1-1/2-11-1/2

#32 MP X #32 FP (RIGID) 90*

5502-32-32-FG

2 in

2 in

2-11-1/2

Product Questions & Answers (1)

Question by: Harvey G on Mar 7, 2026, 9:54 PM
got a tight spot on a line, is this the 90 degree elbow that’s male on one end and female on the other?
Answer by: Customer Support on Mar 9, 2026, 6:32 AM
For making a right angle turn without adding another fitting, it uses a male NPTF thread on one side and a female NPTF thread on the other. Both ends are 3/8-18 NPTF threads and follow SAE J476.
