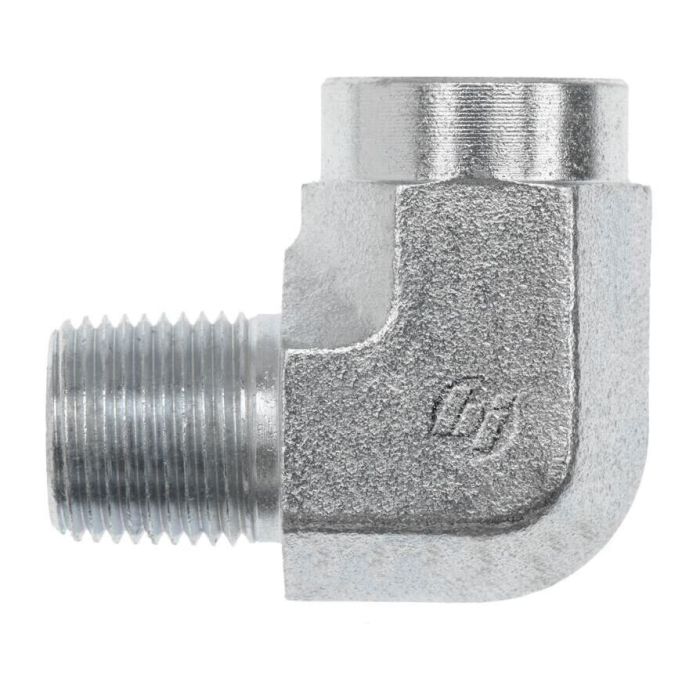

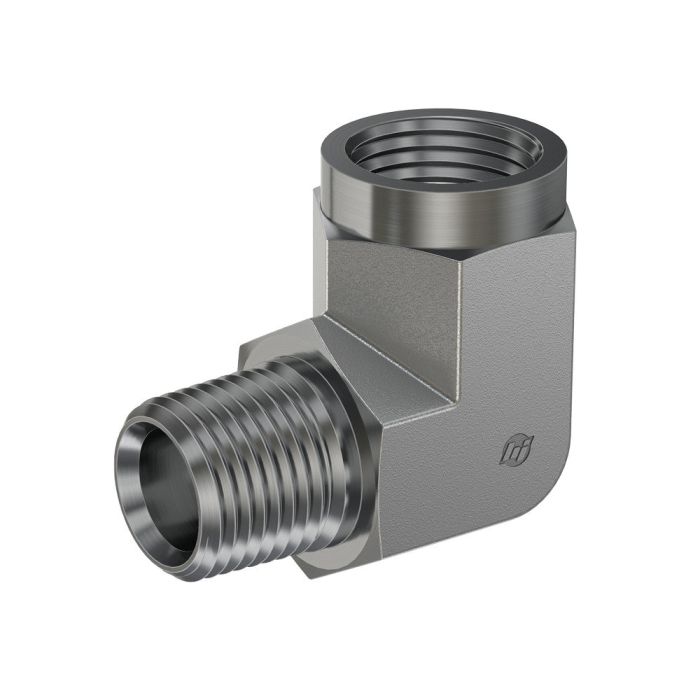

06MP-08FP 90 DEG STREET ELBOW

Description & Features

Crafted from high-quality steel forging, this 90-degree street elbow is designed to deliver exceptional durability and reliability in high-pressure hydraulic systems. With a maximum dynamic pressure rating of 5,000 PSI, it is an ideal choice for demanding industrial applications. The elbow features a precise male NPTF thread on one end and a female NPTF thread on the other, conforming to SAE J476 standards, ensuring a secure and leak-free connection.

Measuring 1.280 mm in centerline length and 1.230 mm in overall length, the 06MP-08FP 90 DEG STREET ELBOW is engineered for optimal performance in compact spaces. It is part of the 5502-FG series, recognized for its robust construction and reliable performance. The combination of thread sizes, 3/8-18 and 1/2-14, makes it versatile for various hydraulic setups, enhancing its applicability in diverse industrial environments.

SKU: 5502-06-08-FG

Supplier Part Number (MPN): 5502-06-08-FG

Alternate Part Numbers: 5502-06-08, A2089-6-8S, BR-5502-06-08-FG

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
3.387 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.23 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.06 in
l Dimensions
1.23 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
5502-FG Series
Thread 2 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
1/2-14 x 3/8-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
02MP-02FP 90 DEG STREET Elbow

5502-02-02-FG

1/8 in

1/8 in

1/8-27

0.563 in

02MP-04FP 90 DEG STREET ELBOW

5502-02-04

1/8 in

1/4 in

1/4-18 x 1/8-27

3/4 in

04MP-02FP 90 DEG STREET ELBOW

5502-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

0.563 in

04MP-04FP 90 DEG STREET Elbow

5502-04-04-FG

1/4 in

1/4 in

1/4-18

3/4 in

04MP-06FP 90 DEG STREET ELBOW

5502-04-06

1/4 in

3/8 in

3/8-18 x 1/4-18

7/8 in

06MP-04FP 90 DEG STREET ELBOW

5502-06-04-FG

3/8 in

1/4 in

3/8-18 x 1/4-18

7/8 in

06MP-06FP 90 DEG STREET Elbow

5502-06-06-FG

3/8 in

3/8 in

3/8-18

7/8 in

#8 MP X #4 FP (RIGID) 90*

5502-08-04

1/2 in

1/4 in

1/2-14 x 1/4-18

7/8 in

08MP-08FP 90 DEG STREET Elbow

5502-08-08-FG

1/2 in

1/2 in

1/2-14

1.06 in

Forged Steel 90 Degree Street Elbow Tube

5502-12-06-FG

3/4 in

3/8 in

3/4-14 x 3/8-18

1.06 in

12MP-08FP 90 DEG STREET ELBOW

5502-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

1.06 in

12MP-12FP 90 DEG STREET Elbow

5502-12-12-FG

3/4 in

3/4 in

3/4-14

1.312 in

12MP-16FP 90 DEG STREET ELBOW

5502-12-16-FG

3/4 in

1 in

1-11-1/2 x 3/4-14

1-5/8

16MP-16FP 90 DEG STREET Elbow

5502-16-16-FG

1 in

1 in

1-11-1/2

1-5/8

20MP-20FP 90 STREET ELB

5502-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-7/8 in

24MP-24FP 90 DEG STREET Elbow

5502-24-24-FG

1-1/2 in

1-1/2 in

1-1/2-11-1/2

#32 MP X #32 FP (RIGID) 90*

5502-32-32-FG

2 in

2 in

2-11-1/2
