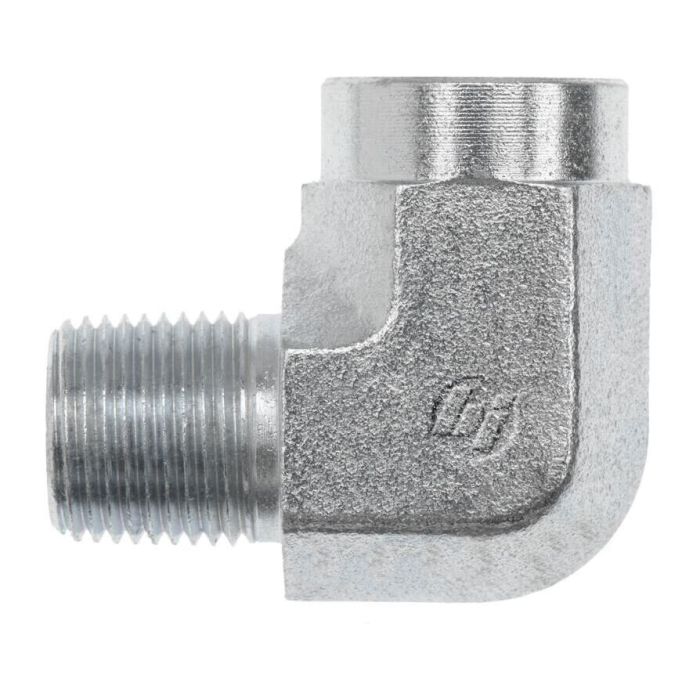

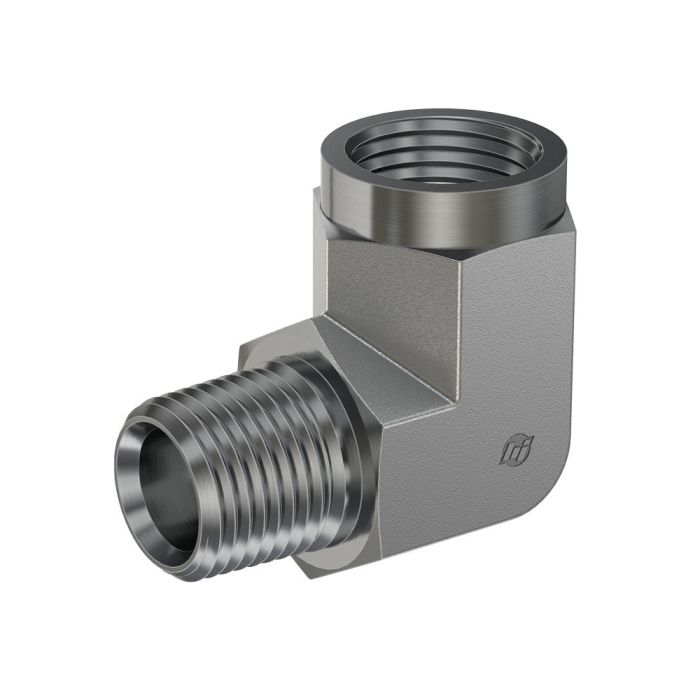

main product photo

08MP-08FP 90 DEG STREET Elbow

Ask A Question

Description & Features

The BRENNAN INDUSTRIES INC 5502-08-08-FG also known as the 08MP-08FP 90 DEG STREET Elbow is designed for high-performance industrial applications. Crafted from steel forging this elbow fitting facilitates fluid dynamics with a maximum dynamic pressure of 5 000 PSI.

Manufactured to meet SAE J476 specifications the 08MP-08FP 90deg Street Elbow features a centerline length of 1.470 mm and an overall length of 1.230 mm. The dual-threaded connections include a male NPTF type B1 and a female NPTF type B2 both with thread sizes of 1/2-14 and drill sizes of 0.531 mm.

Its cubic inch space measures 3.742 ensuring a precise fit within tight spaces. This forged elbow fitting's robust construction ensures long-term durability under demanding conditions.

Ideal for systems requiring secure and reliable elbow connections this product excels in maintaining fluid integrity.

Supplier Part Number: 5502-08-08-FG

California Residents: PROP-65 WARNING

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
3.742 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.23 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.06 in
l Dimensions
1.23 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
5502-FG Series
Thread 2 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14

Product Questions & Answers (3)

Question by: Norm H on Aug 18, 2025, 8:57 PM
What kind of pressure can this elbow hold up to, and is it rated for NPTF threading on both ends?
Answer by: Customer Support on Aug 20, 2025, 6:56 AM
Rated at 5,000 PSI maximum dynamic pressure, this forged steel elbow handles demanding hydraulic and fluid systems without issue. Both connections are NPTF threaded at 1/2-14 and built to SAE J476 spec. One end is male, the other female, which is standard street elbow configuration. That dry-seal thread design on both sides helps keep fluid from working its way past the connection over time.
Question by: Ricky J on Nov 13, 2025, 6:51 AM
got a 1/2-14 NPTF male port and need to turn the line 90 degrees, is this the right elbow for that?
Answer by: Customer Support on Nov 14, 2025, 1:59 PM
For a 90 degree turn with 1/2-14 NPTF threads, this fitting matches up as a street elbow with a male NPTF on one end (B1) and a female NPTF on the other (B2), both 1/2-14, built to SAE J476.
Question by: Rick H on Apr 12, 2025, 9:09 AM
Will this elbow handle hot hydraulic fluid without problems?
Answer by: Customer Support on Apr 14, 2025, 7:09 AM
Designed for high-performance industrial applications, this elbow fitting can withstand a maximum dynamic pressure of 5,000 PSI, which speaks to its robust construction and ability to handle demanding conditions.
