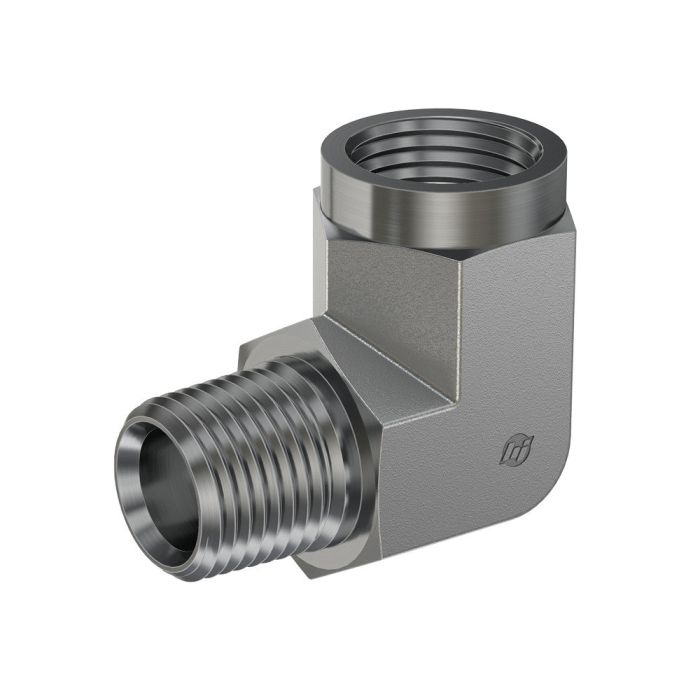

12MP-08FP 90 DEG STREET ELBOW

Description & Features

The 12MP-08FP 90 Degree Street Elbow features a 12MP to 08FP connection.

SKU: 5502-12-08

Supplier Part Number (MPN): 5502-12-08-FG

Alternate Part Numbers: A2089-12-8S

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.06 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
5502-FG Series
Thread Size
3/4-14 x 1/2-14

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
02MP-02FP 90 DEG STREET Elbow

5502-02-02-FG

1/8 in

1/8 in

1/8-27

0.563 in

02MP-04FP 90 DEG STREET ELBOW

5502-02-04

1/8 in

1/4 in

1/4-18 x 1/8-27

3/4 in

04MP-02FP 90 DEG STREET ELBOW

5502-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

0.563 in

04MP-04FP 90 DEG STREET Elbow

5502-04-04-FG

1/4 in

1/4 in

1/4-18

3/4 in

04MP-06FP 90 DEG STREET ELBOW

5502-04-06

1/4 in

3/8 in

3/8-18 x 1/4-18

7/8 in

06MP-04FP 90 DEG STREET ELBOW

5502-06-04-FG

3/8 in

1/4 in

3/8-18 x 1/4-18

7/8 in

06MP-06FP 90 DEG STREET Elbow

5502-06-06-FG

3/8 in

3/8 in

3/8-18

7/8 in

06MP-08FP 90 DEG STREET ELBOW

5502-06-08-FG

3/8 in

1/2 in

1/2-14 x 3/8-18

1.06 in

#8 MP X #4 FP (RIGID) 90*

5502-08-04

1/2 in

1/4 in

1/2-14 x 1/4-18

7/8 in

08MP-08FP 90 DEG STREET Elbow

5502-08-08-FG

1/2 in

1/2 in

1/2-14

1.06 in

Forged Steel 90 Degree Street Elbow Tube

5502-12-06-FG

3/4 in

3/8 in

3/4-14 x 3/8-18

1.06 in

12MP-12FP 90 DEG STREET Elbow

5502-12-12-FG

3/4 in

3/4 in

3/4-14

1.312 in

12MP-16FP 90 DEG STREET ELBOW

5502-12-16-FG

3/4 in

1 in

1-11-1/2 x 3/4-14

1-5/8

16MP-16FP 90 DEG STREET Elbow

5502-16-16-FG

1 in

1 in

1-11-1/2

1-5/8

20MP-20FP 90 STREET ELB

5502-20-20

1-1/4 in

1-1/4 in

1-1/4-11-1/2

1-7/8 in

24MP-24FP 90 DEG STREET Elbow

5502-24-24-FG

1-1/2 in

1-1/2 in

1-1/2-11-1/2

#32 MP X #32 FP (RIGID) 90*

5502-32-32-FG

2 in

2 in

2-11-1/2

Product Questions & Answers (1)

Question by: Neil R on Jun 25, 2025, 6:04 PM
Just want to make sure this elbow fitting will work with my existing setup, which uses a 12MP connection.
Answer by: Customer Support on Jun 26, 2025, 7:05 PM
This 90-degree street elbow adapts a 12MP connection to an 08FP connection.
