main product photo

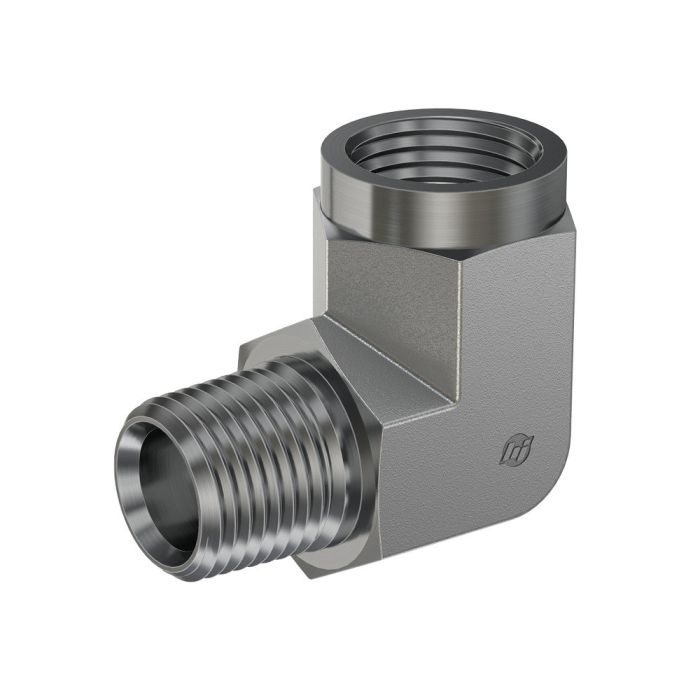

12MP-12FP 90 DEG STREET Elbow

Ask A Question

Description & Features

The 12MP-12FP 90 DEG STREET Elbow is a high-quality component designed by Brennan Industries Inc. It is crafted from durable steel forging ensuring robustness and longevity in high-pressure environments.

Featuring male and female NPTF threads both specified under SAE J476 this street elbow offers reliable connectivity with a thread size of 3/4-14. The maximum dynamic pressure it can withstand is 4 000 PSI making it suitable for demanding applications.

The centerline length of 1.590 mm and overall length of 1.360 mm make it compact yet effective for tight installations.

This elbow is part of the 5502-FG series and comes with a PROP-65 warning for California residents.

Supplier Part Number: 5502-12-12-FG

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
5.941 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.36 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.312 in
l Dimensions
1.36 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
5502-FG Series
Thread 2 Drill Dimensions
0.719 in
Thread B1 Drill Dimensions
0.719 in
Thread Size
3/4-14

Product Questions & Answers (2)

Question by: Roy A on Mar 16, 2026, 4:14 PM
got a 3/4-14 NPTF male line and need to turn it 90 into a female port, is that what this elbow is set up for?
Answer by: Customer Support on Mar 18, 2026, 6:46 AM
For a 90 degree street elbow setup, it gives you a 3/4-14 male NPTF on one end and a 3/4-14 female NPTF on the other, both to SAE J476, so it fits that male-to-female NPTF turn.
Question by: Dean W on Dec 2, 2025, 9:44 AM
What's the pressure rating on this elbow? Gotta make sure it can handle what I'm throwin' at it.
Answer by: Customer Support on Dec 4, 2025, 6:53 AM
This fitting is rated for a maximum dynamic pressure of 4,000 PSI, making it suitable for high-pressure applications.
