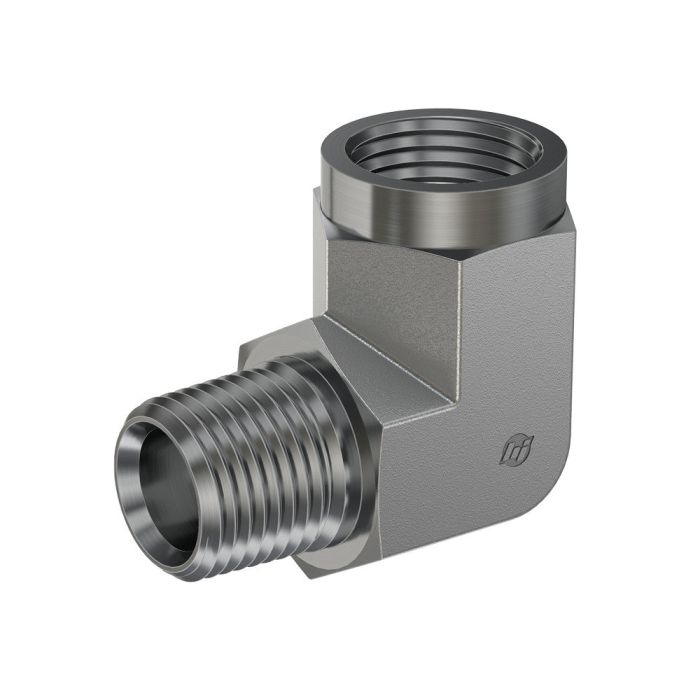

12MP-16FP 90 DEG STREET ELBOW

Description & Features

Forged from steel, the 12MP-16FP 90 Deg Street Elbow provides a 90-degree directional change in a compact inline configuration, with one male NPTF thread and one female NPTF thread conforming to SAE J476. The male port measures 3/4-14 and the female port measures 1-11-1/2, making this a reducing street elbow suited for connecting lines of different sizes within a single fitting.

Rated to 3,000 PSI maximum dynamic pressure, this fitting is appropriate for hydraulic and fluid power circuits where reliable sealing and durability under pressure are required. The forged steel construction of the Brennan 5502-Fg Series provides the structural integrity expected in demanding industrial environments. California residents should note this product carries a Prop 65 warning.

SKU: 5502-12-16-FG

Supplier Part Number (MPN): 5502-12-16-FG

Alternate Part Numbers: 5502-12-16, A2089-12-16S, BR-5502-12-16-FG

Specifications

Supplier Part Number 5502-12-16-FG	Product Weight 0.00 lbs

Product Questions & Answers (1)

Question by: Dwayne S on May 9, 2025, 7:29 PM

So, this elbow has a 3/4-inch male thread on one end and a 1-inch female on the other? Just want to make sure I'm reading it right.

Answer by: Customer Support on May 11, 2025, 3:15 PM

That's correct. The 3/4-14 male NPTF thread and 1-11-1/2 female NPTF thread allow you to connect different sized lines with a single fitting.
