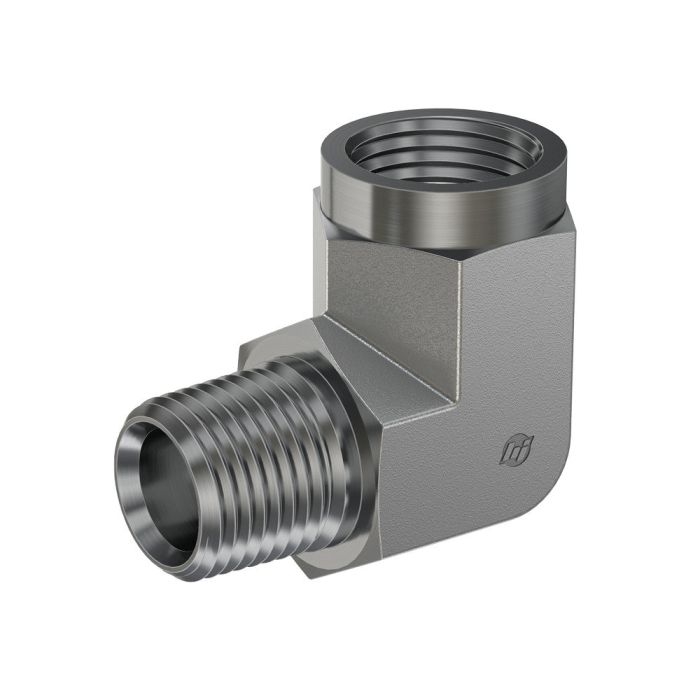

main product photo

16MP-16FP 90 DEG STREET Elbow

Ask A Question

Description & Features

This 16MP-16FP 90 DEG STREET Elbow forged by Brennan Industries Inc serves as a robust connector in industrial applications. It has a maximum dynamic pressure capacity of 3 000 psi making it ideal for environments that demand high resilience.

Manufactured from steel forging it ensures longevity and dependable strength. Both ends feature threads with specifications of SAE J476 with one side having a Male NPTF thread type and the other a Female NPTF. The centerline length measures 1.970 mm.

The overall length of this component is 1.620 mm and it occupies a cubic inch space of 10.999. The thread drill diameters on both ends are 0.938 mm with a thread size of 1-11-1/2.

Supplier Part Number: 5502-16-16-FG

MPN: 5502-16-16-FG

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
10.999 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.62 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-5/8
l Dimensions
1.62 in
Material
Steel
Material Construction
AISI C1045 Steel
Series
5502-FG Series
Thread 2 Drill Dimensions
0.938 in
Thread B1 Drill Dimensions
0.938 in
Thread Size
1-11-1/2

Product Questions & Answers (1)

Question by: Debbie Y on Feb 9, 2026, 8:55 AM
got a 1-11-1/2 nptf male on one side and need a matching 90 into a female port, is that what this elbow is?
Answer by: Customer Support on Feb 11, 2026, 6:52 AM
For a 90 degree street elbow setup, this one matches that arrangement: one end is Male NPTF and the other end is Female NPTF, both in SAE J476 with a 1-11-1/2 thread size.
