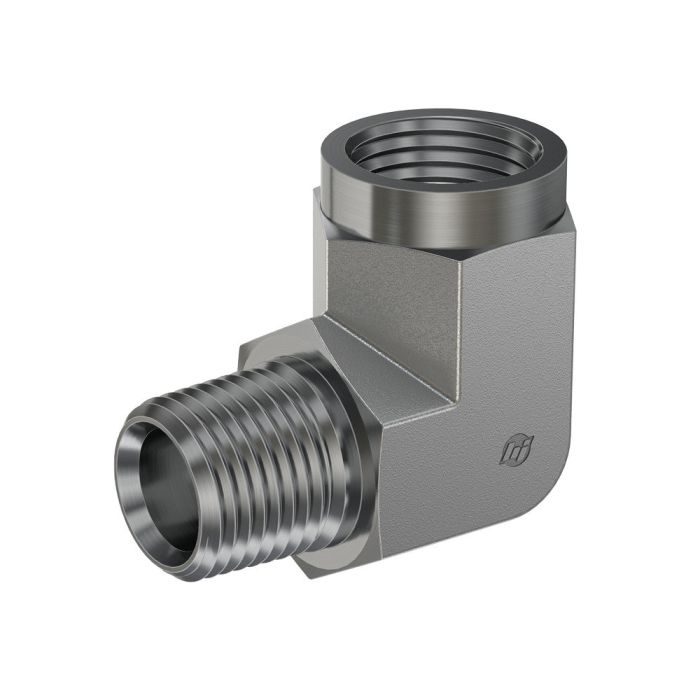

20MP-20FP 90 STREET ELB

Description & Features

The Brennan Industries Inc. 20MP-20FP 90 Street Elbow is a robust and reliable component for various industrial applications. This 90-degree street elbow is designed for efficient and secure connections in demanding environments.

Crafted with precision the street elbow facilitates a smooth flow within systems ensuring optimal performance. The 20MP-20FP 90 Street Elbow is not adjustable and does not include additional components such as a battery blades or a case.

It is engineered to meet high standards with no color coding or check valve included. This product is not machine mountable and does not require a mandrel or ratcheting mechanism.

The 20MP-20FP 90 Street Elbow is ideal for professionals seeking durable and efficient components for their industrial setups.

MPN: 5502-20-20

Supplier Part Number: 5502-20-20-FG

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-7/8 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
1500 psi
Series
5502-FG Series
Thread Size
1-1/4-11-1/2

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
02MP-02FP 90 DEG STREET Elbow

5502-02-02-FG

1/8 in

1/8 in

1/8-27

0.563 in

02MP-04FP 90 DEG STREET ELBOW

5502-02-04

1/8 in

1/4 in

1/4-18 x 1/8-27

3/4 in

04MP-02FP 90 DEG STREET ELBOW

5502-04-02

1/4 in

1/8 in

1/4-18 x 1/8-27

0.563 in

04MP-04FP 90 DEG STREET Elbow

5502-04-04-FG

1/4 in

1/4 in

1/4-18

3/4 in

04MP-06FP 90 DEG STREET ELBOW

5502-04-06

1/4 in

3/8 in

3/8-18 x 1/4-18

7/8 in

06MP-04FP 90 DEG STREET ELBOW

5502-06-04-FG

3/8 in

1/4 in

3/8-18 x 1/4-18

7/8 in

06MP-06FP 90 DEG STREET Elbow

5502-06-06-FG

3/8 in

3/8 in

3/8-18

7/8 in

06MP-08FP 90 DEG STREET ELBOW

5502-06-08-FG

3/8 in

1/2 in

1/2-14 x 3/8-18

1.06 in

#8 MP X #4 FP (RIGID) 90*

5502-08-04

1/2 in

1/4 in

1/2-14 x 1/4-18

7/8 in

08MP-08FP 90 DEG STREET Elbow

5502-08-08-FG

1/2 in

1/2 in

1/2-14

1.06 in

Forged Steel 90 Degree Street Elbow Tube

5502-12-06-FG

3/4 in

3/8 in

3/4-14 x 3/8-18

1.06 in

12MP-08FP 90 DEG STREET ELBOW

5502-12-08

3/4 in

1/2 in

3/4-14 x 1/2-14

1.06 in

12MP-12FP 90 DEG STREET Elbow

5502-12-12-FG

3/4 in

3/4 in

3/4-14

1.312 in

12MP-16FP 90 DEG STREET ELBOW

5502-12-16-FG

3/4 in

1 in

1-11-1/2 x 3/4-14

1-5/8

16MP-16FP 90 DEG STREET Elbow

5502-16-16-FG

1 in

1 in

1-11-1/2

1-5/8

24MP-24FP 90 DEG STREET Elbow

5502-24-24-FG

1-1/2 in

1-1/2 in

1-1/2-11-1/2

#32 MP X #32 FP (RIGID) 90*

5502-32-32-FG

2 in

2 in

2-11-1/2

Product Questions & Answers (1)

Question by: Ricky M on Jul 18, 2025, 1:39 PM
Will this elbow handle standard hydraulic pressures without any problem?
Answer by: Customer Support on Jul 20, 2025, 6:37 AM
It's designed to hold up in demanding industrial environments, ensuring secure connections and consistent flow under pressure.
