main product photo

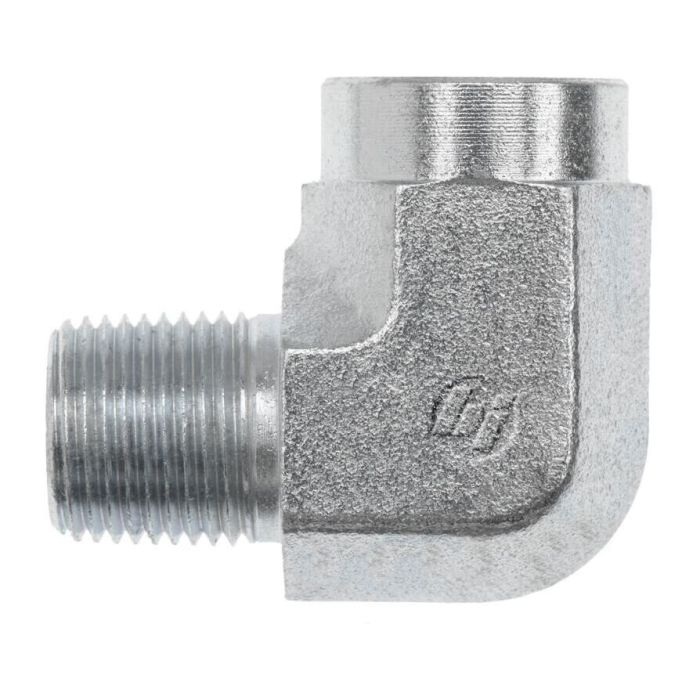

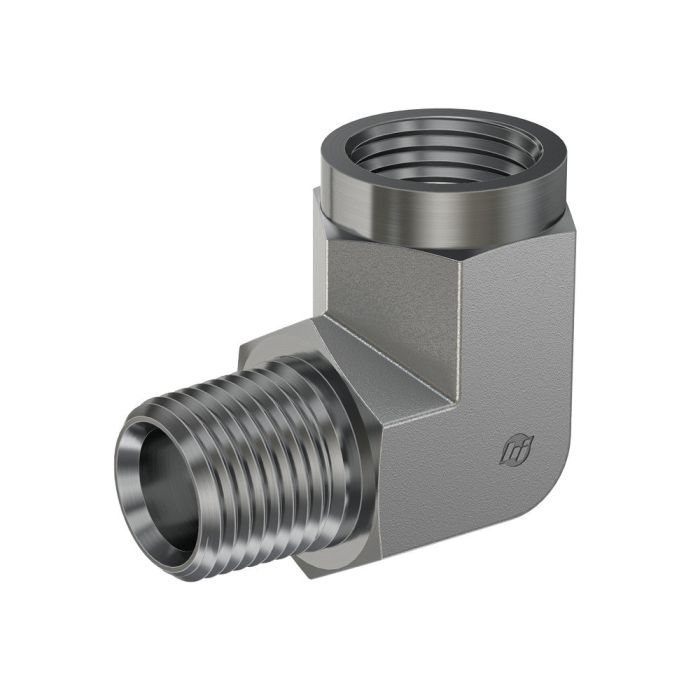

#32 MP X #32 FP (RIGID) 90*

Ask A Question

Description & Features

This forged 90-degree street elbow from Brennan Industries Inc. is an essential component for industrial applications. Designed with precision it connects a male NPTF thread to a female NPTF thread both adhering to SAE J476 specifications.

Constructed from high-quality steel forging this elbow ensures durability and reliability under dynamic pressure up to 2 000 PSI. The centerline length is 3.000 mm and the overall length measures 2.390 mm making it a compact yet robust fitting. The component's threading features a size of 2-11-1/2 ensuring compatibility with various systems.

The #32 MP X #32 FP (RIGID) 90* provides efficient and secure connections reducing potential leaks and ensuring optimal performance. Its cubic inch space dimensions of 47.031 (L X W X H) provide a compact solution for tight spaces. Additionally the forged manufacturing process guarantees strength and longevity aiding in the seamless integration into demanding settings.

MPN: 5502-32-32-FG

Supplier Part Number: 5502-32-32-FG

For California residents please note the PROP-65 WARNING.

Specifications

Brand
BRENNAN
Connection Size 1
2 in
Connection Size 2
2 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
47.031 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.39 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
l Dimensions
2.39 in
Material
Steel
Material Construction
AISI C1045 Steel
Series
5502-FG Series
Thread 2 Drill Dimensions
1.938 in
Thread B1 Drill Dimensions
1.938 in
Thread Size
2-11-1/2

Product Questions & Answers (3)

Question by: Norm M on Jan 23, 2026, 3:23 PM
Got a 2-inch NPTF line I need to redirect, this elbow gonna hold up to the pressure we're running?
Answer by: Customer Support on Jan 24, 2026, 6:03 PM
At 2,000 PSI dynamic pressure rating, it should handle most standard industrial hydraulic line pressures at that pipe size without issue. Both ends are 2-inch NPTF threaded, sized 2-11/2, and built to SAE J476 spec, so if your fittings and line match that standard you're in good shape. The forged steel construction keeps it solid under load rather than just cast, which matters when you've got pressure cycling through it regular.
Question by: Carl G on Apr 3, 2026, 6:08 AM
got a 2-11-1/2 nptf male line i need to turn 90 degrees, is this the one that mates up right?
Answer by: Customer Support on Apr 4, 2026, 9:22 AM
For a 90 degree turn with NPTF threads, this elbow is set up male NPTF on one end and female NPTF on the other, both in size 2-11-1/2 per SAE J476. It is a street elbow style, so it goes from a male NPTF connection into a female NPTF port.
Question by: Melvin B on Jan 11, 2026, 11:51 AM
What kinda pressure can this elbow handle?
Answer by: Customer Support on Jan 12, 2026, 7:02 PM
It's rated for dynamic pressure up to 2,000 PSI, so it should hold up well in most hydraulic systems.
