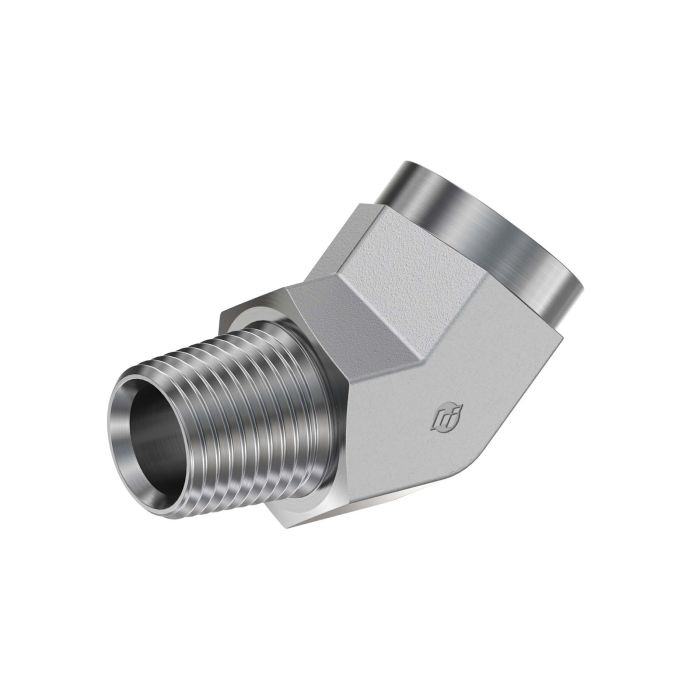

main product photo

04MP-04FP 45 DEG STREET Elbow

Ask A Question

Description & Features

Crafted by Brennan Industries Inc the 04MP-04FP 45 DEG STREET Elbow is essential for various industrial applications. This 45-degree elbow is forged from high-quality steel ensuring durability and reliability in demanding environments.

With a centerline length of 1.050 mm and an overall length of 0.620 mm this component is dimensionally precise. The elbow features a male NPTF thread on one end and a female NPTF thread on the other both with a size of 1/4-18 adhering to SAE J476 specifications.

Its robust construction is designed to meet rigorous standards making it suitable for critical installations. The item must be handled with caution as it comes with a PROP-65 WARNING for residents of California.

Supplier Part Number: 5503-04-04-FG

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
3/4 in
l Dimensions
0.62 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
5503-FG Series
Thread 2 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.281 in
Thread Size
1/4-18

Product Questions & Answers (3)

Question by: Glen C on Mar 22, 2026, 8:41 PM
What material is this elbow made outta?
Answer by: Customer Support on Mar 24, 2026, 7:33 AM
Forged from high-quality steel, this elbow is built to last even in tough industrial settings.
Question by: Lee P on Oct 11, 2025, 3:31 PM
both ends on this thing are 1/4-18 NPTF right? just want to make sure before i order a handful of em
Answer by: Customer Support on Oct 13, 2025, 8:05 AM
Correct on both counts. One end carries a male NPTF thread and the other is female NPTF, both sized at 1/4-18 and built to SAE J476 spec. That male-to-female setup is exactly what makes it a street elbow, so you can thread it directly into a port and still have a female end open for the next fitting in line.
Question by: Diane B on Mar 20, 2026, 6:03 PM
trying to replace a street elbow i’ve got now, is this one 1/4-18 nptf on both ends?
Answer by: Customer Support on Mar 22, 2026, 11:44 AM
It is a 45 degree street elbow with a 1/4-18 male NPTF on one end and a 1/4-18 female NPTF on the other, both to SAE J476.
