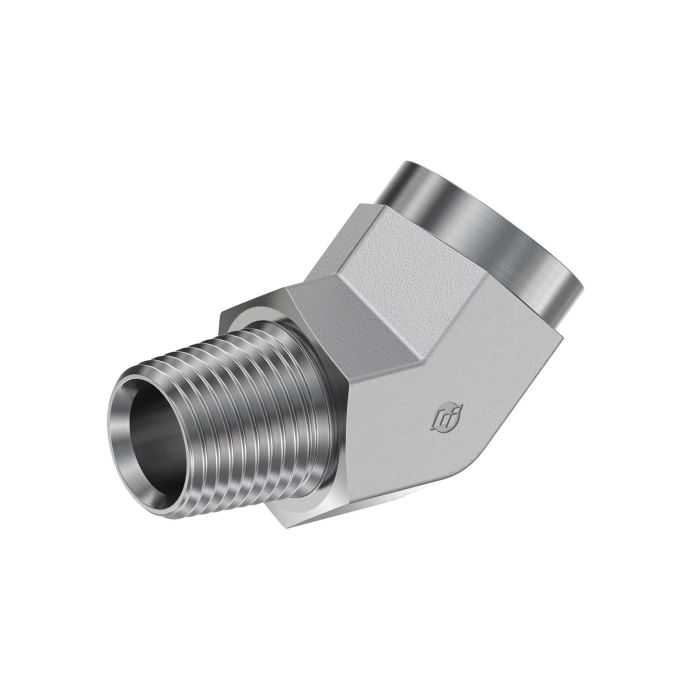

main product photo

06MP-06FP 45 DEG STREET Elbow

Ask A Question

Description & Features

Manufactured using premium steel forging this 06MP-06FP 45 elbow is crafted for precision and reliability. Featuring Male NPTF and Female NPTF threads both with SAE J476 specifications it is designed to meet stringent industry standards.

With a centerline length of 1.060 mm and an overall length of 0.720 mm it facilitates a seamless 45-degree angle connection. The thread size for both connections is 3/8-18 ensuring compatibility and durability.

As part of the 5503-FG series by Brennan Industries Inc. this forged elbow is ideal for specialized applications requiring robust and high-quality components.

Supplier Part Number: 5503-06-06-FG

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
7/8 in
l Dimensions
0.72 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4500 psi
Series
5503-FG Series
Thread 2 Drill Dimensions
0.406 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
3/8-18

Product Questions & Answers (2)

Question by: Sherry R on Oct 26, 2025, 4:48 PM
trying to replace an old 5503-06-06 elbow, is this the same thing or am i gonna end up with the wrong threads
Answer by: Customer Support on Oct 28, 2025, 8:05 AM
For a straight replacement match, this part is Brennan 5503-06-06-FG and it also crosses to 5503-06-06 and A2088-6-6S. Threading is Male NPTF on one end and Female NPTF on the other, and both ends are 3/8-18 to SAE J476.
Question by: Lee P on Oct 19, 2025, 12:08 PM
Will this elbow work with standard NPT fittings, or is there something special about the threads?
Answer by: Customer Support on Oct 21, 2025, 8:54 AM
This elbow uses Male NPTF and Female NPTF threads, both manufactured to SAE J476 specifications, so it will work with other standard NPT fittings.
