MP - FP 45 DEGREE

Ask A Question

Description & Features

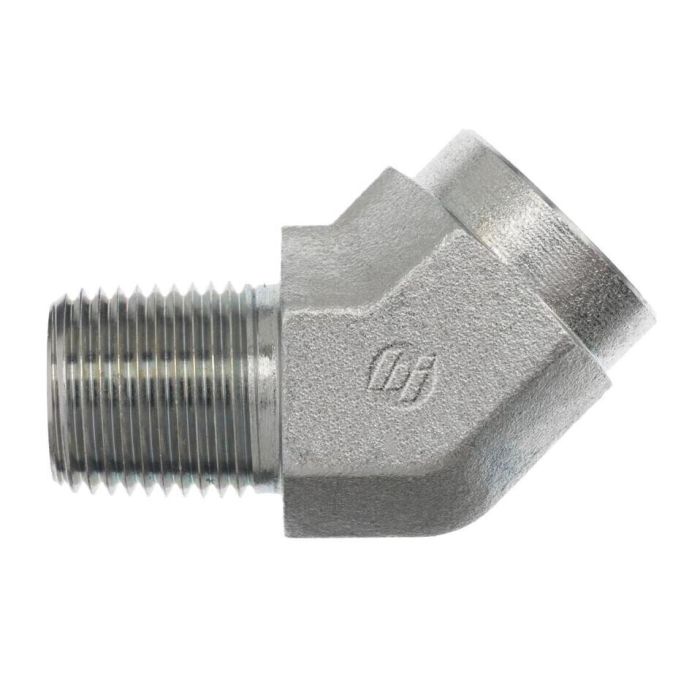

Crafted from straight stainless steel, the Brennan Industries MP - FP 45 Degree elbow ensures durability and resistance to corrosion in demanding industrial environments. This fitting features a 45-degree angle, making it ideal for applications requiring directional changes in hydraulic systems. It comes with both male and female NPTF threads, each measuring 1/2-14, conforming to the SAE J476 standard, ensuring a secure and leak-free connection.

The elbow's precise dimensions include a centerline length of 1.340 mm and an overall length of 0.910 mm, making it a compact solution for space-constrained assemblies. Designed for reliability, this fitting is a part of the Brennan 5503-FG series, known for its robust performance in industrial settings. It is suitable for use in various hydraulic applications where stainless steel fittings are preferred for their strength and longevity.

SKU: 5503-08-08-SS

Supplier Part Number (MPN): 5503-08-08-SS

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Fitting Type
45 deg Elbow
Hex Size
1.06 in
l Dimensions
0.91 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
3000 psi
Series
5503-FG Series
Thread 2 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14

Product Questions & Answers (1)

Question by: Scott S on Jun 26, 2025, 9:43 PM
Will this fitting hold up if I need to make a pretty tight turn in my hydraulic line?
Answer by: Customer Support on Jun 28, 2025, 6:46 AM
This 45-degree elbow is designed for exactly that, allowing you to change the direction of your hydraulic line. It’s made from stainless steel, so it should withstand normal operating pressures without issue.
