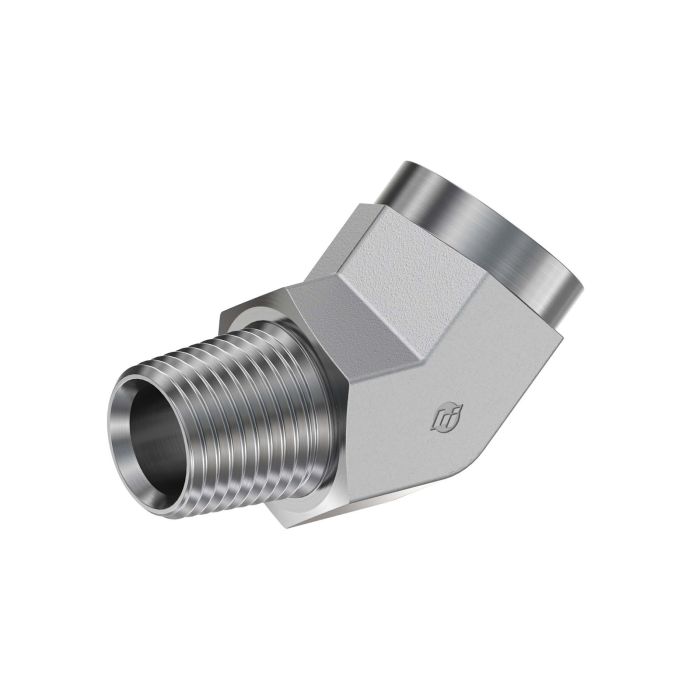

main product photo

08MP-08FP 45 DEG STREET ELBOW

Ask A Question

Description & Features

Manufactured by Brennan Industries, this 1/2 in. male pipe to 1/2 in. female pipe 45-degree street elbow is designed to change flow direction within a hydraulic or industrial fluid line while keeping connections in line along the same fitting body. The street configuration, with one male and one female end, allows direct connection without a separate coupling, reducing the number of components in a circuit.

The 08MP-08FP 45 Deg Street Elbow suits applications where moderate directional routing adjustments are needed in tight or space-constrained installations. The 45-degree angle provides a less abrupt transition than a 90-degree elbow, which can help reduce turbulence and pressure drop through the joint.

SKU: 5503-08-08

Supplier Part Number (MPN): 5503-08-08-FG

Alternate Part Numbers: A2088-8-8S

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1.06 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Operating Temperature
-65 to 500 deg F
Series
5503-FG Series
Thread Size
1/2-14

Product Questions & Answers (1)

Question by: Dwayne H on Feb 8, 2026, 5:27 PM
Does this fitting help turn a line at a kinda gentle angle, not a hard 90?
Answer by: Customer Support on Feb 10, 2026, 6:54 AM
That's right, it's made to change the direction of flow by 45 degrees, which is less abrupt than a 90-degree elbow. This can help reduce turbulence and pressure drop in the line.
