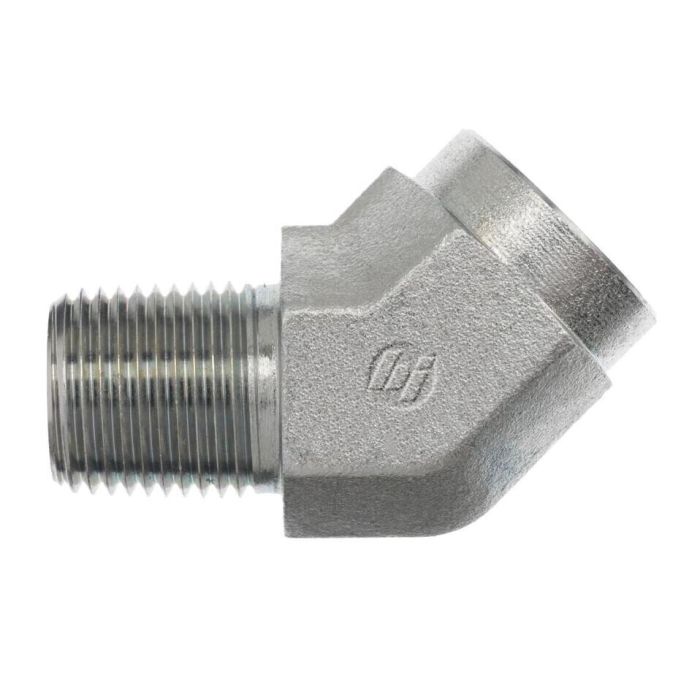

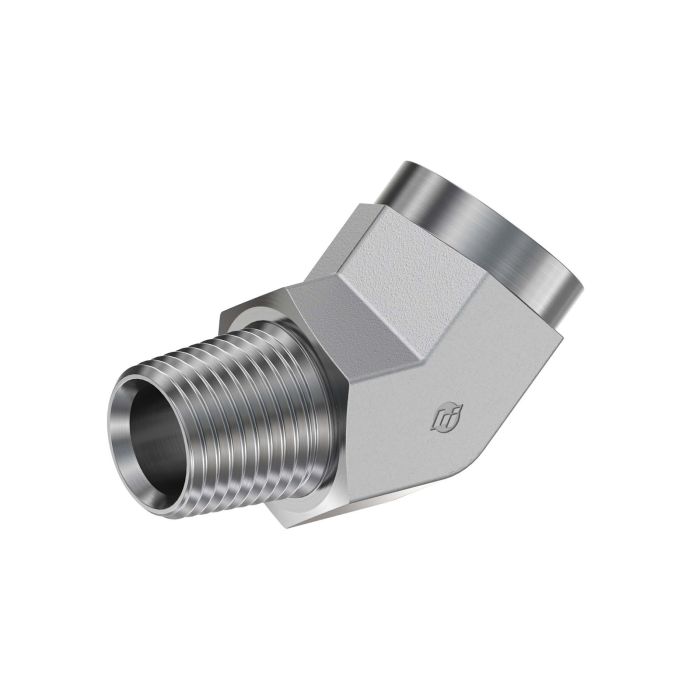

main product photo

24MP-24FP 45 STREET ELB

Ask A Question

Description & Features

Manufactured by Brennan Industries Inc this product is designed for high-demand applications. With a raw material type of steel forging this fitting ensures durability and reliability. The 24MP-24FP 45 Street Elbow features male NPTF thread type on one end and female NPTF thread type on the other both conforming to SAE J476 specifications.

The centerline length is 2.060 mm and the overall length is 1.690 mm making it suitable for various setups. Threads on both ends have a size of 1-1/2-11-1/2 ensuring compatibility with industry standards. Ideal for industrial use it offers a 45-degree angle for enhanced functionality in complex assemblies.

MPN: 5503-24-24-FG

Supplier Part Number: 5503-24-24-FG

Specifications

Brand
BRENNAN
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
l Dimensions
1.69 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
1500 psi
Series
5503-FG Series
Thread 2 Drill Dimensions
1.5 in
Thread B1 Drill Dimensions
1.5 in
Thread Size
1-1/2-11-1/2

Product Questions & Answers (1)

Question by: Curt A on Mar 28, 2026, 11:18 AM
What size threads does this elbow fitting use?
Answer by: Customer Support on Mar 30, 2026, 7:58 AM
This 45-degree street elbow has 1-1/2-11-1/2 threads on both the male and female ends.
