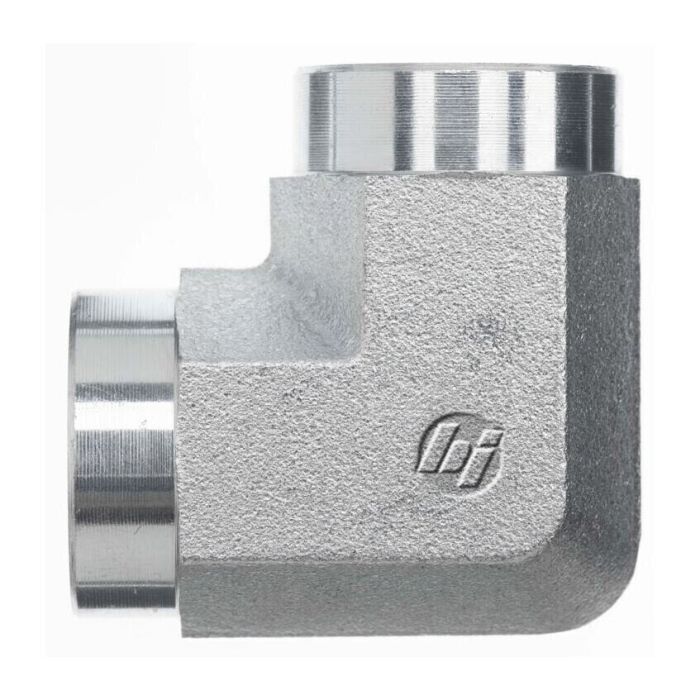

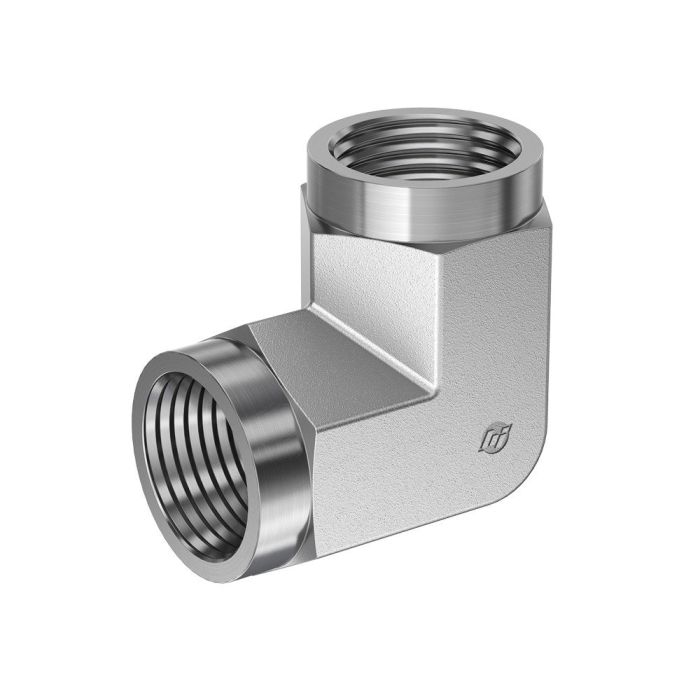

08FP-08FP 90 DEG Elbow

Ask A Question

Description & Features

The 08FP-08FP 90 DEG Elbow from Brennan Industries Inc. is a high-quality forged steel component designed for precision engineering applications. This elbow fitting features a 90-degree angle that facilitates efficient directional changes in fluid flow systems.

Constructed from durable steel forging it is capable of withstanding a maximum dynamic pressure of 5 000 psi. It has a centerline length of 1.230 mm and an overall length of 1.230 mm making it suitable for compact installations.

The elbow is designed with 1/2-14 female NPTF threads on both ends compliant with SAE J476 specifications. The thread drills measure 0.531 mm providing a secure and reliable connection in demanding environments.

It belongs to the 5504-FG series ensuring consistency and compatibility with other components in the series. Its cubic inch space dimensions are 3.293 optimizing space utilization in setup designs.

As a forged component this 90-degree elbow is built to deliver long-lasting performance in industrial fluid networks. It adheres to stringent quality standards ensuring reliability and durability

Supplier Part Number: 5504-08-08-FG

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
3.293 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.23 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.06 in
l Dimensions
1.23 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
5504-FG Series
Thread 2 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14

Product Questions & Answers (2)

Question by: Bobby M on May 27, 2025, 8:45 AM
got a spot where i need to change direction on a half-inch hydraulic line and space is real tight. this elbow work for something like that?
Answer by: Customer Support on May 28, 2025, 9:42 AM
For a 1/2-14 NPTF connection in a tight spot, this fitting is a solid choice. The 90-degree angle handles the directional change, and the forged steel construction holds up to 5,000 psi dynamic pressure. Both ends are female NPTF threaded, so you'll need male NPTF fittings on whatever lines you're connecting to. It's part of Brennan's 5504-FG series, which is a forged line built for demanding fluid system work.
Question by: Hugh A on Jun 12, 2025, 6:54 PM
What's the deal with that Prop 65 warning for California residents?
Answer by: Customer Support on Jun 14, 2025, 12:35 PM
This elbow fitting contains a chemical known to the State of California to cause cancer or other reproductive harm.
