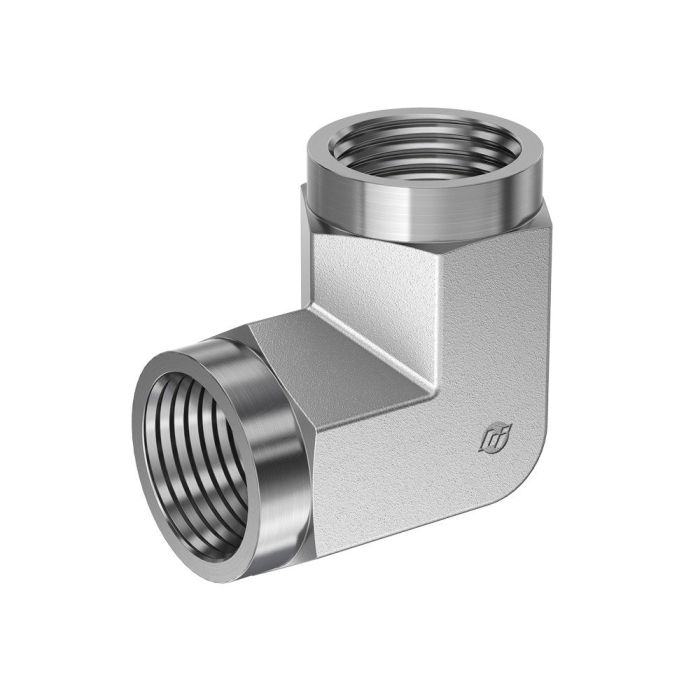

16FP-16FP 90 DEG Elbow

Ask A Question

Description & Features

The 16FP-16FP 90 DEG Elbow by Brennan Industries Inc is engineered from high-quality steel forging ensuring robust and reliable performance under various industrial conditions. This elbow features a centerline length and overall length of 1.620 mm providing compact yet efficient connectivity.

With a maximum dynamic pressure capacity of 3 000 psi this elbow is suitable for demanding applications. It incorporates Female NPTF threads conforming to SAE J476 standards with thread sizes of 1-11-1/2.

The forged construction not only offers durability but also adds to the precision and integrity of the component. The cubic inch space measures 9.615 making it a versatile part for various setups.

Supplier Part Number: 5504-16-16-FG

Centerline Length 1 (Mm): 1.620

Maximum Dynamic Pressure (Psi): 3 000

Thread B1 Size: 1-11-1/2

Thread B2 Size: 1-11-1/2

Thread B1 Specification: SAE J476

Note: California residents may require a PROP-65 WARNING due to the raw materials used.

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
9.615 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.62 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-5/8
l Dimensions
1.62 in
Material
Steel
Material Construction
AISI C1045 Steel
Series
5504-FG Series
Thread 2 Drill Dimensions
0.938 in
Thread B1 Drill Dimensions
0.938 in
Thread Size
1-11-1/2

Product Questions & Answers (2)

Question by: Norm J on Dec 1, 2025, 8:28 AM
Both ports on this thing are female NPTF, right? Just want to make sure I ain't gotta track down adapters before I put it in.
Answer by: Customer Support on Dec 3, 2025, 6:21 AM
Correct on both ends. Each port is a female NPTF thread, 1-11/2 taper, and both conform to SAE J476. So if you're running male NPTF fittings on your lines, you're good to go without any extra adapters in between.
Question by: Scott B on Oct 2, 2025, 12:45 PM
got a tight spot on a manifold, how much room does this 90 elbow take up?
Answer by: Customer Support on Oct 4, 2025, 12:19 PM
For tight layouts, the centerline length and the overall length are both listed at 1.620 mm, and the part’s cubic inch space is 9.615, so it’s meant to be a compact 90 degree turn.
