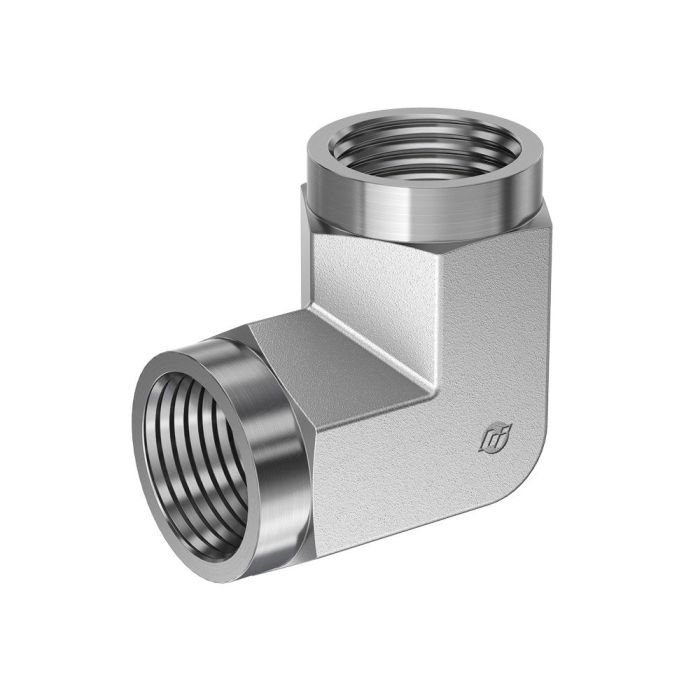

20FP-20FP 90 DEG ELBOW

Description & Features

Forged from steel, this 90-degree elbow provides a right-angle change of direction in hydraulic and industrial fluid systems. Both ports are 1-1/4-11-1/2 Female Nptf threads, conforming to SAE J476, making it suitable for leak-free dry-seal connections at each end. The forged steel construction of the 20FP-20FP 90 Deg Elbow delivers the structural integrity required for demanding pressure environments, with a rated maximum dynamic pressure of 2,500 PSI.

Part of Brennan's 5504-Fg series, this fitting is a practical choice for routing hydraulic lines where space constraints or installation angles require a compact 90-degree transition between same-size female threaded connections.

SKU: 5504-20-20-FG

Supplier Part Number (MPN): 5504-20-20-FG

Alternate Part Numbers: 5504-20-20, A2087-20-20S

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
13.043 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.7 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-7/8 in
l Dimensions
1.7 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
1500 psi
Series
5504-FG Series
Thread 2 Drill Dimensions
1.25 in
Thread B1 Drill Dimensions
1.25 in
Thread Size
1-1/4-11-1/2

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Steel Adapter, 1/4-18 Female NPT To 1/8-27 Female NPT, 90 deg Elbow

5504-04-02 Steel Female NPT 90 deg Elbow

1/4 in

1/8 in

1/4-18 x 1/8-27

3/4 in

04FP-04FP 90 DEG Elbow

5504-04-04-FG

1/4 in

1/4 in

1/4-18

3/4 in

5504-06-06-FG

5504-06-06-FG

3/8 in

3/8 in

3/8-18

7/8 in

08FP-08FP 90 DEG Elbow

5504-08-08-FG

1/2 in

1/2 in

1/2-14

1.06 in

5504-12-12-FG

5504-12-12-FG

3/4 in

3/4 in

3/4-14

1.312 in

16FP-12FP 90 ELBOW

5504-16-12

1 in

3/4 in

1-11-1/2 x 3/4-14

1-5/8

16FP-16FP 90 DEG Elbow

5504-16-16-FG

1 in

1 in

1-11-1/2

1-5/8

Product Questions & Answers (1)

Question by: Brenda W on Dec 6, 2025, 9:46 PM
What's this elbow made out of?
Answer by: Customer Support on Dec 8, 2025, 8:23 AM
Forged steel gives this 90-degree elbow the strength it needs for demanding hydraulic systems.
