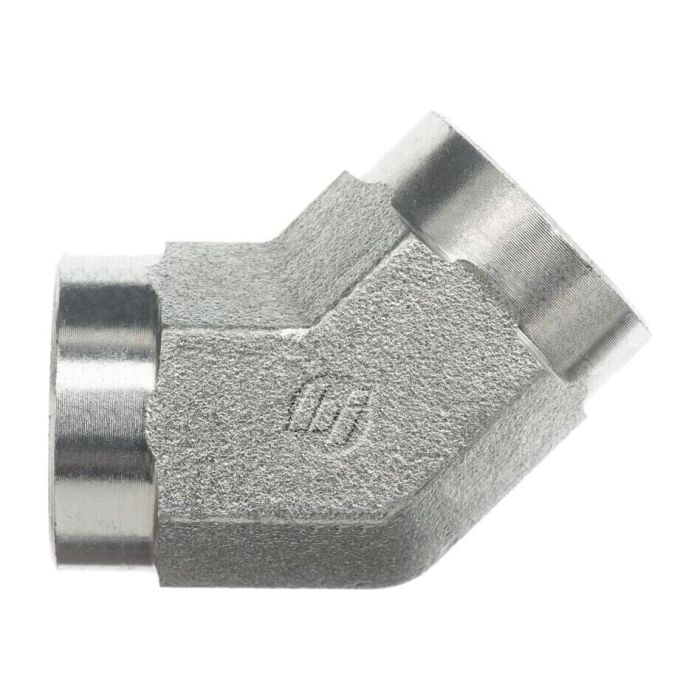

main product photo

02FP-02FP 45 DEG Elbow

Ask A Question

Description & Features

This forged steel 45-degree elbow features female NPTF threads on both ends, sized at 1/8-27 according to SAE J476 specifications. The 02FP-02FP 45 DEG Elbow is constructed from quality steel forging material.

This fitting is part of the 5505-FG series from Brennan Industries.

SKU: 5505-02-02-FG

Supplier Part Number (MPN): 5505-02-02-FG

Alternate Part Numbers: 5505-02-02

Specifications

Brand
BRENNAN
Connection Size 1
1/8 in
Connection Size 2
1/8 in
Connection Type
FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
0.563 in
l Dimensions
1/2 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
5505-FG Series
Thread 2 Drill Dimensions
0.188 in
Thread B1 Drill Dimensions
0.188 in
Thread Size
1/8-27

Product Questions & Answers (3)

Question by: Jean P on Jan 14, 2026, 8:31 PM
got a tight spot on a line, is this elbow the kind with female pipe threads on both ends?
Answer by: Customer Support on Jan 16, 2026, 1:18 PM
You are looking at a 45 degree forged steel elbow with female NPTF threads on both ends. Both ports are 1/8-27 per SAE J476, so it is meant to join two matching male NPTF ends while turning the run 45 degrees.
Question by: Brenda H on Apr 20, 2025, 12:08 PM
Will this fitting work with standard NPT fittings, or does it need something special?
Answer by: Customer Support on Apr 22, 2025, 6:30 AM
This elbow has female NPTF threads on both ends, so it's designed to work with other standard NPTF fittings.
Question by: Kirk W on Sep 15, 2025, 8:17 PM
both ends are 1/8-27 female NPTF on this thing, right? just want to make sure before I order a handful of em
Answer by: Customer Support on Sep 17, 2025, 6:25 AM
Correct on both counts. Each end carries a 1/8-27 female NPTF thread, and both conform to SAE J476. So if you're threading male NPTF fittings into each side, you're set up right.
