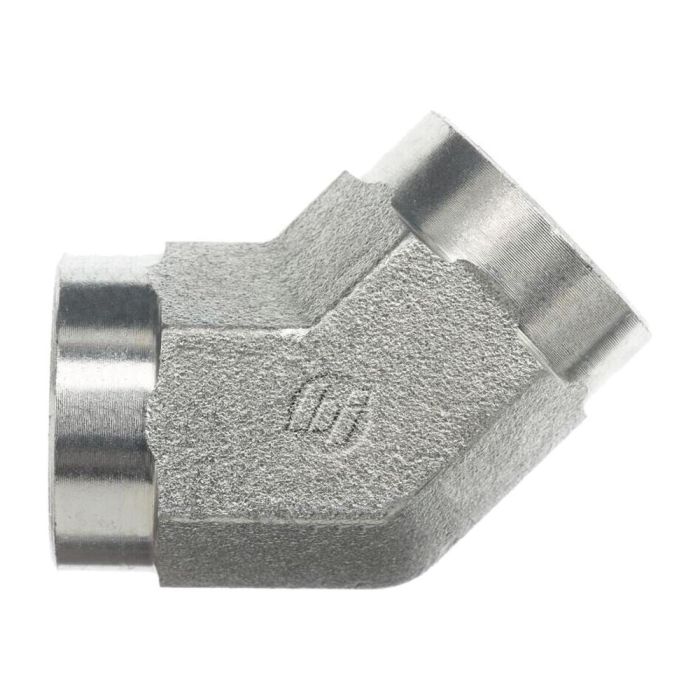

main product photo

04FP-04FP 45 DEG Elbow

Ask A Question

Description & Features

Constructed from high-quality steel forging, the 04FP-04FP 45 DEG Elbow from Brennan Industries is designed for durability and reliability in industrial applications. This elbow features a 45-degree angle, making it ideal for systems requiring precise direction changes while maintaining optimal flow efficiency. The component incorporates Female NPTF threads conforming to SAE J476 standards, ensuring compatibility with a wide range of hydraulic systems.

The elbow's compact design, with both centerline and overall lengths measuring 0.690 mm, supports installation in confined spaces without compromising performance. With a thread size of 1/4-18 and a drill diameter of 0.281 mm, it offers a secure, leak-resistant connection. This product is an essential component for those seeking robust solutions in demanding environments.

SKU: 5505-04-04-FG

Supplier Part Number (MPN): 5505-04-04-FG

Alternate Part Numbers: 5505-04-04

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
3/4 in
l Dimensions
0.69 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
5505-FG Series
Thread 2 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.281 in
Thread Size
1/4-18

Product Questions & Answers (2)

Question by: Terry K on Sep 15, 2025, 1:35 PM
trying to swap out an elbow on a line, is this one 1/4-18 female nptf on both ends?
Answer by: Customer Support on Sep 16, 2025, 4:51 PM
Both ports are Female NPTF threads, size 1/4-18, and they follow the SAE J476 thread specification.
Question by: Billy J on Dec 29, 2025, 11:25 AM
both ports on this elbow are female NPTF, that right? just want to make sure before i order a handful of em
Answer by: Customer Support on Dec 30, 2025, 12:06 PM
Correct on both ends. The 1/4-18 Female NPTF threads are the same on each port, conforming to SAE J476. So whatever male NPTF fittings you're running on both sides of the connection, they'll mate up the same way on each end.
