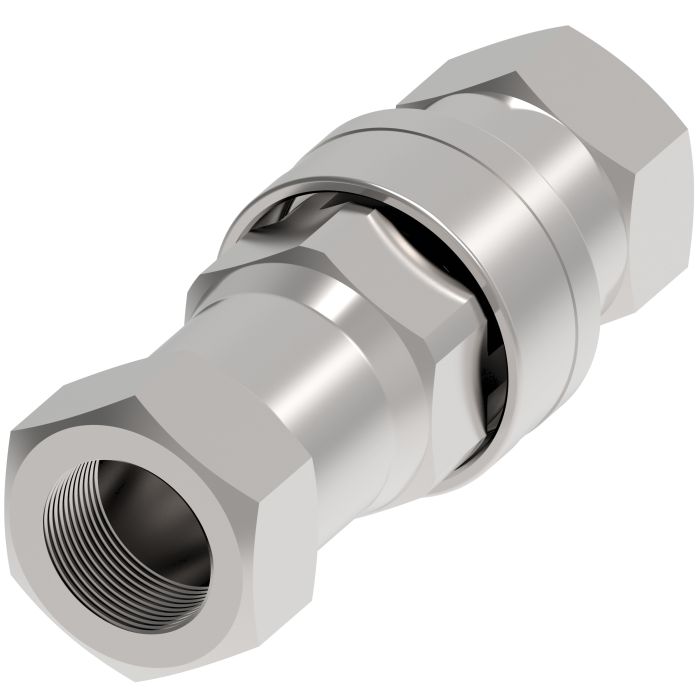

Designed for hydraulic fluid transfer across agricultural, construction, and in-plant manufacturing equipment, this 1/4 in. carbon steel quick disconnect coupling socket from Eaton's Hansen 5600 Series provides reliable, tool-free connection and disconnection in demanding field and facility environments. A ball lock internal mechanism and push-to-connect end type allow fast coupling without special tooling, while the 2-way valve design supports controlled fluid flow in both directions.
The Danfoss / Eaton Coupling carries ISO 7241-1 Series A certification and exceeds ISO 16028 operating pressure requirements, making it well-suited for use on dump trucks, snow plows, and maintenance vehicles where connection integrity under pressure is critical. The female NPT port on the secondary end accommodates standard hydraulic fittings, and Buna-N seals provide broad fluid compatibility across common hydraulic media. Rated for operation down to -40°F, the coupling maintains performance in cold-weather service conditions.
SKU: 5600-4-4S
Supplier Part Number (MPN): 5600-4-4S
|
Alternate Part Numbers
MINO-00402X02842
|
Application
Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles
|
Certifications
ISO 7241-1 Series A
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.25
|
End Type 1
Push to Connect
|
End Type 2
NPT
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
1 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Complete
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1/4
|
Product Material
Carbon Steel
|
Product Width
1.08
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
5600-4-4S
|
Valve Type
2 way
|
Product Weight
0.30 lbs
|
